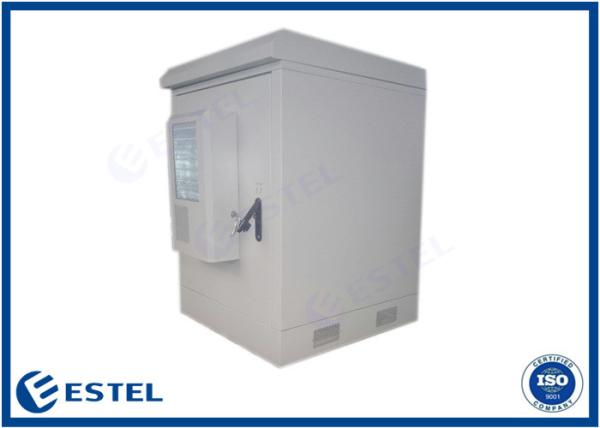

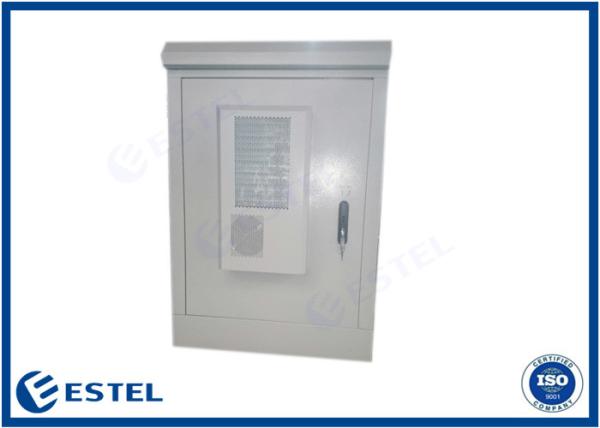

Windproof Two Doors Outdoor Battery Enclosure Heat Insulation Galvanized Steel

1. Description Of Outdoor battery Enclosure
The truth is that on many occasions, an Outdoor battery Enclosure is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.

2. Main Advantages:

Simple, useful, functional construction

The highest protection against corrosion

Galvanized steel Polyester Powder coat

IP55 dust and water protection

Vandal-proof

Compact design

Ready for crane transport

3. Technical Parameters

4. Accessories List

5. Enclosure Cooling

One set Air conditioner 800W and 4 pcs DC48V fans.

6. Cabinet Structure

(1) External Dimension H*W*D 1300*900*900mm

Internal Dimension H*W*D 1000*800*800mm

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; thickness of outer plate: 1.4mm, with heat insulation.

7. Cabinet Diagram:

8. Air conditioner

• Make sure the air conditioner is not connected with power.
• Fix the air conditioner according to the Dimension Diagram.
• Strip the insulation of the power supply wire, and crimp the terminal.
• Connect the wires according to the Electrical Wring Diagram.
• After finishing the wiring, use the multimeter to check if the electric circuit is normal. Then connect the air conditioner with power supply, and use clamp meter to test the operating current.
