Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
Specifications
Brand Name :
ESTEL
Model Number :
ET7575175-EQ
Certification :
ISO9001, CE, RoHs
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs/month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden case
Material :
Sandwich structure panel
External sizeW×D×H :
750×750×1750mm
Surface finish :
Outdoor powder polyester coating
Protection Level :
IP55
Type :
Outdoor cabinet
19 inch space :
32U
Description

IP55 Sandwich Stucture Panel 32U 19 Inch Outdoor Telecom Enclosure Air Conditioner Cooling

1. Specifications

(1) Technical Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension H×W×D 1750×750×750mm;

Internal Dimension H×W×D 1450×650×650mm.

(19”, 32U)
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)
Material Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls.
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and AC220V fans
Lighting LED lamp AC220V LED lamps
Temperature Temperature Working Temperature: -40°C ~ +75°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

(2) Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H×W×D 1750×750×750mm;

Internal Dimension H×W×D

1450×650×650mm.

(2) One compartment,including 32U 19” equipment rack.

(3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock)

(4) Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls.
2 Air Conditioner 1 Set

Power supply: AC220V, 50HZ

Cooling capacity: 1500W
3 Fan 1 Set Two AC220V fans + one temperature controller
4 Environment Monitoring System 1 Set

1× environment monitoring unit,19”, 1U; SNMP communication, AC220V

1× smoke sensor,

1× water sensor,

1× temperature&humidity sensor,

1× door sensor,

1× tilt&shock sensor.
5 Power Distribution Unit

Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4.

Height: 4U
6 LED Lamp Switch 1 PC Used for controlling LED lamp on/off
7 LED Lamp 1 PC AC220V
8 Package 1 Set Wooden Case

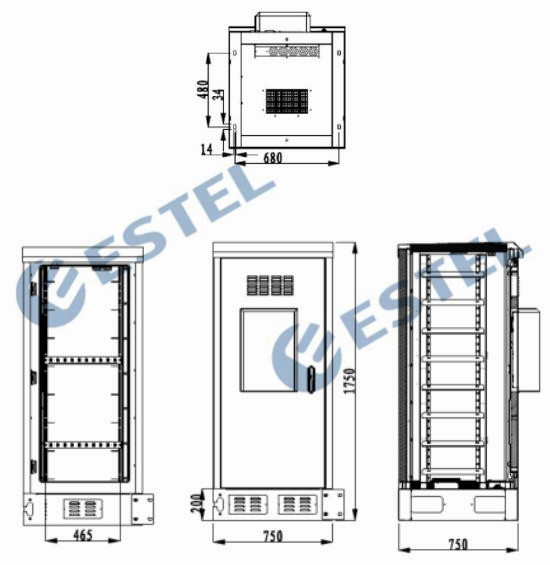

Cabinet Drawing:

External Dimension H×W×D 1750×750×750mm;

Internal Dimension H×W×D 1450×650×650mm.

Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure

2. Summary

The ET7575175-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G system, access/transmission switching station, emergency communication/transmission, etc

Waterproof, sunproof, dustproof, suitable for outdoor environment.

3. Deails Diagram

Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure

4.Shipping-loading container

Sandwich Stucture 32U 19inch Outdoor Electronics Enclosure
