1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
Specifications
Brand Name :
ESTEL
Model Number :
ETA015DC
Certification :
CE, 3C, ROHS
Place of Origin :
China
MOQ :
1 Set
Price :
Depends on order quantity
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per month
Delivery Time :
20 days
Packaging Details :
wooden case + pallet
Power Supply :
-48VDC
Power Consumption :
Low power consumption, energy saving
Cooling Capacity :
1500W@L35/L35
Heating :
Optional
IP Grade :
IP55
Noise Level :
65dB(A)
Finish :
Outdoor type powder coating
Color :
RAL7035
Description

1500W 48VDC Outdoor Power Cabinet Air Conditioner Low Power Consumption R134a

Model: ETA015DC

Technical Parameters

Name Outdoor Cabinet Air Conditioner
Model ETA015DC
Dimension (Including flange) 782×482×200mm
Dimension (Without flange) 745×445×200mm
Weight 34kg
Mounting Method Semi-embedded Mounting
Power Supply -48VDC
Cooling Capacity 1500W@L35/L35
Cooling Consumption 395W@L35/L35
Airflow 440m³/h
Cooling Working Temperature Range -15℃~+55℃
Heating Optional
Refrigerant R134a
IP Grade IP55
Max Noise Level 65dB(A)
Finish Outdoor type powder coating
Standard color:RAL7035

Application

● Outdoor telecom base station

● Outdoor battery cabinet

● Wireless outdoor telecom cabinet

Features & Benefits

● -48VDC power input, wide power supply voltage range

● 1500W cooling capacity (L35L35)

● Low power consumption design, energy saving

● Door mounted – easy integration in outdoor cabinets

● Optional configured with heater

● RS485 for remote control

● Environmental friendly – R134a and RoHS compliant

● Applicable for high temperature environment (T3)

● LED display, all settings can be changed at the field

● Lifetime >10 years – minimum maintenance

● Resistant to corrosive environments – IP55 and Salt fog tested

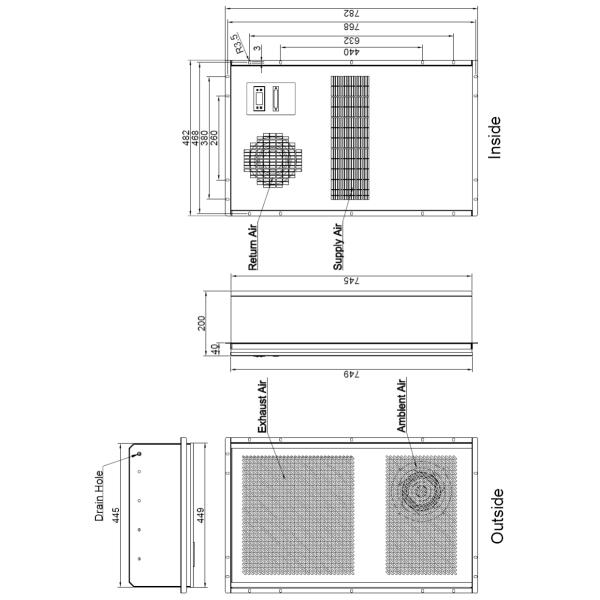

Dimension

1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station

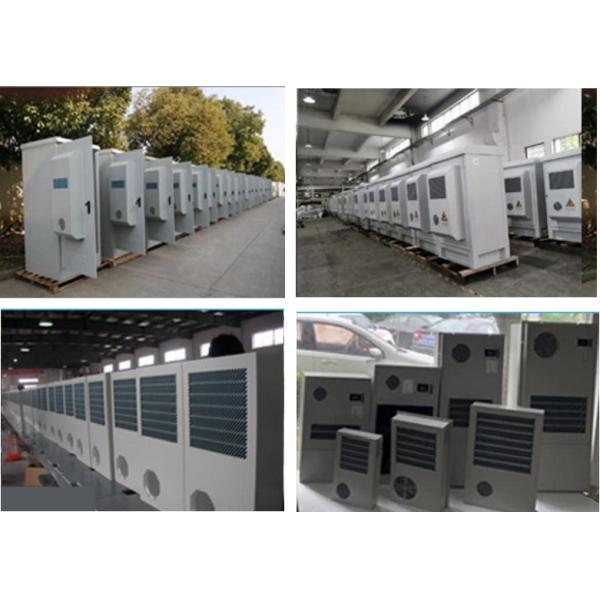

Application

1500W 48VDC Outdoor Cabinet Air Conditioner For Base Station
