Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
Specifications
Brand Name :
ESTEL
Model Number :
ET9090230-EQ-2-4
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
5,000 sets per month
Delivery Time :
20-30 working days
Packaging Details :
Wooden case
Dimension :
W×D×H 900×900×2300mm
Door :
With one front door and one back door
lock :
anti-theft three point lock
padlock :
support
Cooling :
air conditioner and fans
Working Temperature :
-40°C ~ +55°C
Description

Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner

1. Introduction

An electrical enclosure is a housing for electrical or electronic equipment. Its purpose is to protect that equipment from the environment (especially in the case of external electrical enclosures) and also to protect people from the equipment (e.g. to prevent electric shock or the propagation of an explosion).

2. Features

- Special features including windows, AC units, custom doors, insulation, lights, fans and more

- Mounting options: wall, pole, pad and free standing

- The expert guidance of in-house design experts

- Enclosures built to any size in height, width or depth

- Consistent quality at all unit volumes, from one enclosure to hundreds

3. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 900×900×2300mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock).
Material Galvanized steel, double wall with insulation
Ingress Protection IP55
Temperature Control Cooling air conditioner and fans
Lighting LED lamp 48V LED lamps
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 PC

(1) External Dimension: W×D×H 900×900×2300mm

(2) One compartment

(3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
2 Air Conditioner 2 PC

Cooling capacity: 2000W.

Power Supply: AC220V, 50Hz.

One installed on front door, the other on back door.
3 Auxiliary Direct Ventilation Fans 2 PC DC48V
4 LED Lamp 2 PC DC48V
5 LED Lamp Switch 2 PC One for controlling LED lamp on/off
6 Power Distribution Unit 1 PC

Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz
7 Package 1 PC Wooden Case

5. Cabinet Structure

(1) External Dimension W×D×H 900×900×2300mm

(2) One compartment;

(3) totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

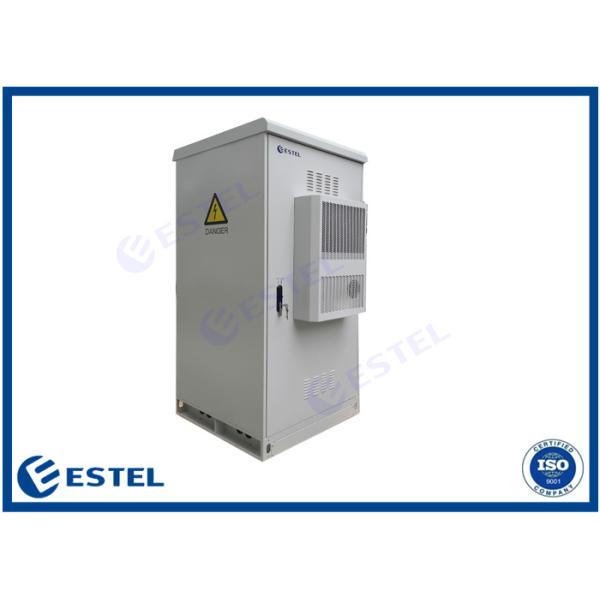

6. Cabinet Pictures

Double Wall 19 Inch 40U Outdoor Electrical Enclosure Box 2000W Air Conditioner
