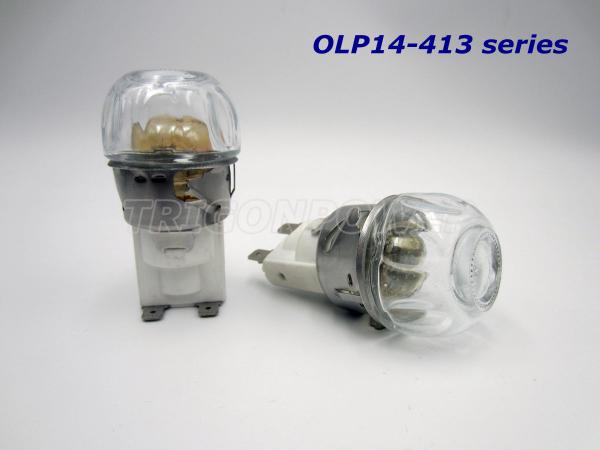

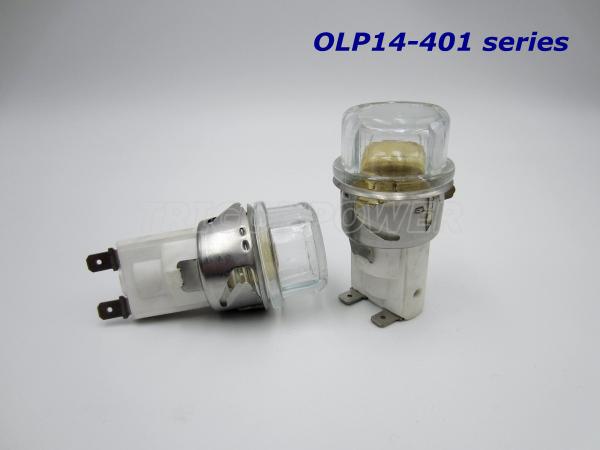

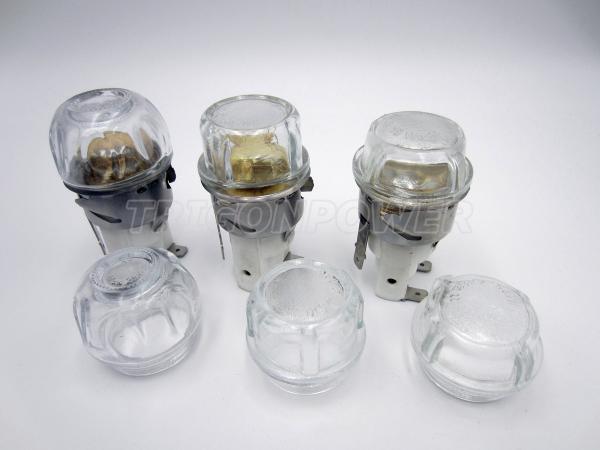

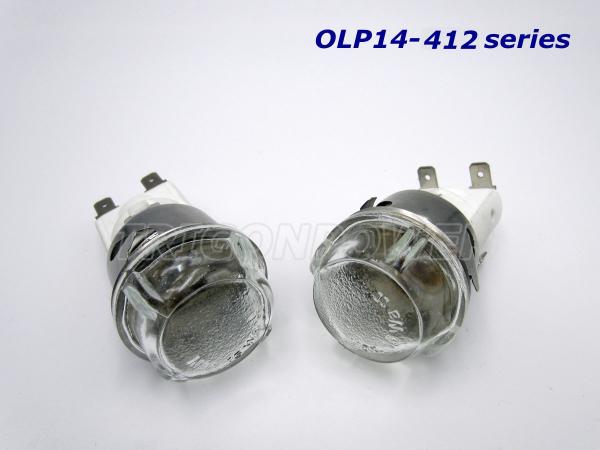

Ingenious Semi-frosted Style E14 oven lamp With

Abundant Soft Brightness Working Well In Mini Oven

Description:

This model oven lamp is one of the important components for oven machines,

especially in mini oven. This product’s main function is lighting in the oven

machine’s internal barbecue room. With the help of oven lamp we could clearly

observe the conditions of barbecued foods.When the oven machine is working,

the temperature of the oven machine’s internal barbecue room would increase to

more than 300 degrees centigrade. Even in mini oven, the temperature would

beyond 250 degrees centigrade. So we have to selected the suitable material with

good high temperature resistant properties to manufacture products to ensure the

oven lamp could work well and long lifetime under the high temperature working

environment. In order to ensure the food safty, all of these raw material had

passed the RoHs tests, so we could prevent the oven lamp could not release any

hazardous substance to pollute the barbecued foods during the barbecue time.

We make some frosted glass design on the top of the bowl shape appearance

glass cover. This design would let the light which propagate through the top

position of glass cover become soft, and our eyes would not be hurt by the

intence light. And the light which propagate through the around sides is still the

bright light, so the brighness is enough for the oven, especially for the mini oven.

Specifications:

Advantages:

1. Soft brightness lighting

In order to avoid the intence light directly propagate the user's eyes, we design the unique

frosted glass on the top of glass cover. And the around side parts of bowl shape appearance

glass cover is still transparent style. So the light would propagate directly through these parts

towards to every parts of barbecue room. If you choose this type oven lamp, not only you

could get enough brightness in your oven machine, but also you could get the soft brightness

in your oven machine. This type especially is the best choice for mini oven.

2. Good high temperature resistance property

The oven lamp is composed by glass cover, lamp holder, fixing ring, terminal, E14 metallic ring

and E14 lamp bulb etc. 6 parts. Below table shows the fusion point information for these parts’

raw material. According to these information, we known that all the raw material are good

high temperature resistant material. For the limit of the lamp bulb’s sealing material’s

abilities, the lamp bulb’s working temperature just reach 300 degrees centigrade. So a total

oven lamp’s max working temperature is 300 degrees centigrade. The T300 is good enough to

meet the oven machine’s working requirements.

3. Good electrical properties(insulation & conductivity)

The glass and porcelain are the good insulation material for electrical products, our oven

lamp’s max voltage resistance value is more than AC 450V. So this good insulating property

could ensure the user’s safety. And the stainless steel and galvanized steel are all the good

conductor material which could ensure that the lamp could work well.

4. Long working lifetime

We use the best raw materials and technologies to manufacture the parts for oven lamp

products. For example:

1) We use the best tungsten filament and the best sealing material in the market to

manufacture the lamp bulbs.

2) The glass cover must through the glass tempering process increase it’s strength.

3) The lamp holder also need several exclusive processes, such as continuous forming, aging

treatment and super high temperature sintering, to ensure it’s hardness.

Such these reliable production control measures could guarantee the oven lamp with stable

quality and long lifetime services.

5. Be convenient for installation

We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible

trigeminal wing-style structure part. With the three flexible wings we could install the oven

lamp easily into the fixing hole on the board surface of barbecue space. With the three wings

and fixing point we could fix the oven lamp accurately on the right position on the board.

6. Be convenient for cleaning and maintenance

For the reason of material, you could clean the surface of glass cover easily. The oven lamp is

fixed tightly on the board surface of barbecue space, so even an unprofessional housewife

could change the lamp bulb breezily.

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Steam Oven (with sealing washer)

7. Industry Oven

8. Other Home Appliances with lighting demand
