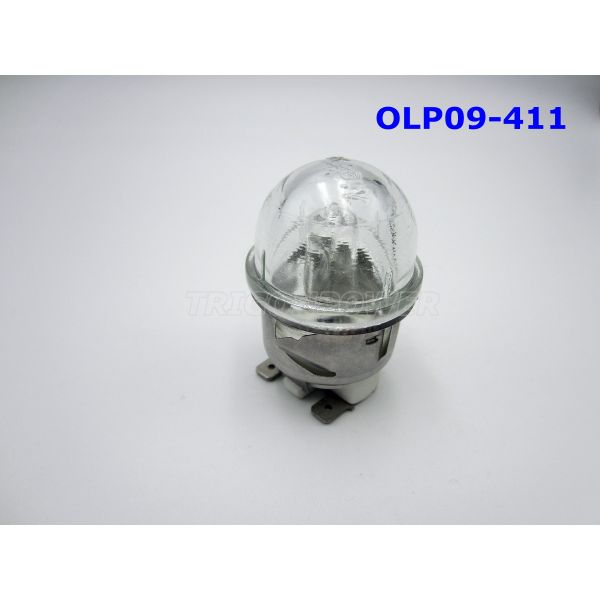

Multiple brightness 25 watt oven light bulb
Description:
We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible trigeminal wing-style structure part. With the three flexible wings we could install the oven lamp easily into the fixing hole on the board surface of barbecue space. With the three wings and fixing point we could fix the oven lamp accurately on the right position on the board.
Specifications:
ITEM | INFORMATION | NOTE |
TYPE | G9 STANDARD | |
NOMINAL VOLTAGE | AC 250V | BY TUV |
NOMINAL CURRENTS | 2A | BY TUV |
WORKING VOLTAGE | AC 110~220V 50/60 Hz | |
VOLTAGE RESISTANCE | > AC 450V | |
LIGHTING POWER | 25w | |
WORKING TEMP. | T300 | |
WORKING LIFE | > 1000 hours | Under T300 |
TERMINAL | ||
RAW MATERIAL | Galvanized steel / stainless steel / copper | |
SIZE | Faston 6.3x 0.8 | |
GLASS COVER | ||
RAW MATERIAL | soda-lime / high borosilicate glass | |
APPERANCE | Bowl / hemisphere / polygon | |
SIZE | 40 /41 /43 /54 mm | |
COLOR | Full-transparent / semi-frosted | |
LAMP HOLDER | ||
RAW MATERIAL | high frequency porcelain | |
COLOR | bright white | |
FIXING RING | ||
RAW MATERIAL | stainless steel - 304 | |
COLOR | bright silver | |
E14 METALLIC RING | ||
RAW MATERIAL | galvanized steel / copper | |
COLOR | bright silver |
Applications:
Electrical and standard ovens, microwave oven and similar places subject to medium operating temperatures. Available for these equipment luminaires fitted in different positions such as downlighter, side-light and backlight.
Advantages:
1. Multiple brightness mode
We design several glass cover styles, such as full-transparent style, semi-transparent with frosted, and full-frosted etc. Different style glass cover together with different power lamp bulb would show different brightness effects. Generally we suggest that our clients could choose the semi-transparent with frosted glass cover style oven lamp for mini oven, because the soft brightness would not dazzling the user’s eyes. We suggest that our clients could choose the full-transparent glass cover style oven lamp for free standing style oven or gas cooker, because the bright light could supply user enough brightness. And the full-frosted glass cover style oven lamp was exclusive designed for professional cooking, the abundant and comfortable brightness is the best love of cooks.
2. Good high temperature resistance
To guarantee that our oven lamp products could operate well under around 300 degrees centigrade environments, we had made many necessary measures. First, we select the good quality materials with good high temperature resistant properties as the raw material for oven lamp products. These materials are all have very high fusion point. (see below talbe) We also use the advanced machines and production technologies to increase the parts’ high temperature resistant properties. With the current level of sealing material and sealing technology of lamp bulb, the incandescent lamp bulb’s max temperature resistant property could reach 350 degrees centigrade. And the halogen lamp bulb’s max temperature resistant property could reach 400 degrees centigrade. So we could ensure that our products could work well in common 300 degrees centigrade oven or gas cooker.
component | Raw material | Fusion point of material |
Glass cover | Soda-lime / high borosilicate glass | > 600 degrees centigrade |
Lamp holder | High frequency porcelain | > 1500 degrees centigrade |
Fixing ring | Stainless steel - 304 | > 1500 degrees centigrade |
Lamp bulb | high borosilicate glass | > 600 degrees centigrade |
copper | > 3000 degrees centigrade | |
tungsten filament | > 3000 degrees centigrade |
