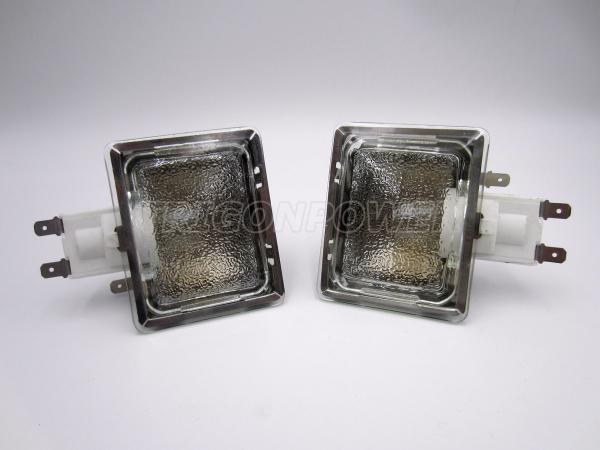

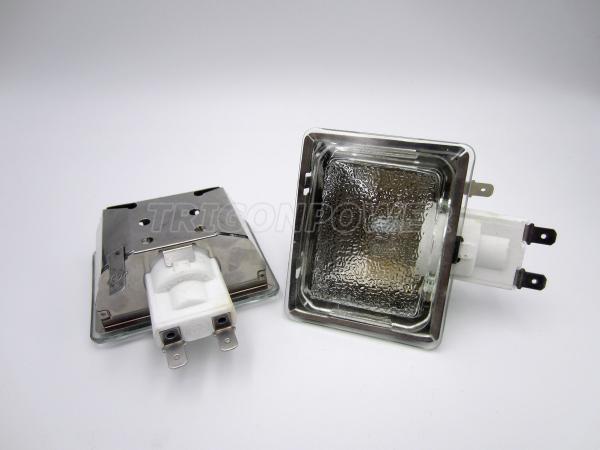

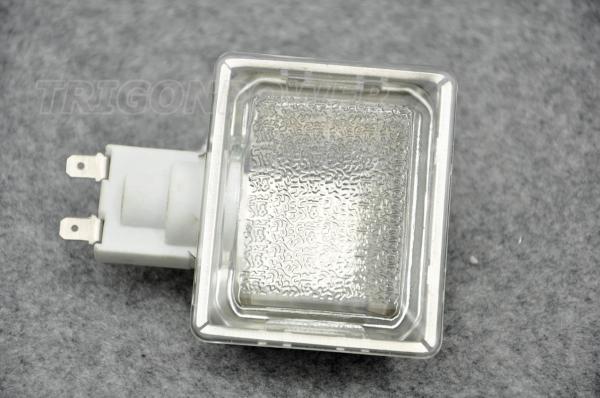

Concise And Elegant Square Style E14 Oven Lamp With

Professional Design To Meet Commercial Oven Demands

Description:

This model oven lamp is one of the important components for gas cooker

machines. This product’s main function is lighting in the gas cooker machine’s

internal barbecue room. With the help of oven lamp we could clearly observe the

conditions of barbecued foods. When the gas cooker machine is working, the

temperature of the oven machine’s internal barbecue room would increase to

more than 300 degrees centigrade. So we have to selected the suitable material

with good high temperature resistant properties to manufacture products to

ensure the oven lamp could work well and long lifetime under the high

temperature working environment. In order to ensure the food safty, all of these

raw material had passed the RoHs tests, so we could prevent the oven lamp could

not release any hazardous substance to pollute the barbecued foods during the

barbecue process.

We set a large bulb room to contain big power bulb, such as 40w bulb. So this

type oven lamp could supply enough brightness for large barbecue room, and

could meet the professional cooking’s demands. The flat shape bulb room with

good thermal designs to ensure the bulb could stably work for long time. In order

to avoid the intense lights from the large power bulbs hurt the user’s eyes, we

make the full-frosted design on the glass cover. This design could ensure that the

users could observe the barbecue food’s situation under the soft and enough

brightness.

Specifications:

Advantages:

1. Enough soft brightness for large barbecue room

In order to avoid the intense lights from the large power bulbs hurt the user’s eyes, we make

the full-frosted design on the glass cover. This design could ensure that the users could

observe the barbecue food’s situation under the soft and enough brightness. We set a large

bulb room to contain big power bulb, such as 40w bulb. So this type oven lamp could supply

enough brightness for large barbecue room, and could meet the professional cooking’s

demands.

2. Good high temperature resistance property

The oven lamp is composed by glass cover, lamp holder, fixing ring, terminal, E14 metallic

ring and E14 lamp bulb etc. 6 parts. Below table shows the fusion point information for these

parts’ raw material. According to these information, we known that all the raw material are

good high temperature resistant material. For the limit of the lamp bulb’s sealing material’s

abilities, the lamp bulb’s working temperature just reach 300 degrees centigrade. So a total

oven lamp’s max working temperature is 300 degrees centigrade. The T300 is good enough

to meet the oven machine’s working requirements. The flat shape bulb room with good

thermal designs also to ensure the bulb could stably work for long time.

3. Good electrical properties(insulation & conductivity)

The glass and porcelain are the good insulation material for electrical products, our

ovenlamp’s max voltage resistance value is more than AC 450V. So this good insulating

property could ensure the user’s safety. And the stainless steel and galvanized steel are all

the good conductor material which could ensure that the lamp could work well.

4. Long working lifetime

We use the best raw materials and technologies to manufacture the parts for oven lamp

products. For example:

1) We use the best tungsten filament and the best sealing material in the market to

manufacture the lamp bulbs.

2) The glass cover must through the glass tempering process increase it’s strength.

3) The lamp holder also need several exclusive processes, such as continuous forming, aging

treatment and super high temperature sintering, to ensure it’s hardness.

Such these reliable production control measures could guarantee the oven lamp with stable

quality and long lifetime services.

5. Be convenient for installation

We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible

trigeminal wing-style structure part. With the three flexible wings we could install the

ovenlamp easily into the fixing hole on the board surface of barbecue space. With the three

wings and fixing point we could fix the oven lamp accurately on the right position on the

board.

6. Be convenient for cleaning and maintenance

For the reason of material, you could clean the surface of glass cover easily. The oven lamp is

fixed tightly on the board surface of barbecue space, so even an unprofessional housewife

could change the lamp bulb breezily.

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Gas Cooker

4. Steam Oven (with sealing washer)

5. Industry Oven

6. Other Home Appliances with lighting demand
