Specifications
Brand Name :
TRIGONPOWER
Model Number :
G9 SERIES
Certification :
TUV_SUD, CE
Place of Origin :
P.R.CHINA
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500,000 pcs/ month
Delivery Time :
45 days after order confirmed
Packaging Details :
200 pcs / carton; 16000 pcs / pallet
BULB TYPE :
G9 STANDARD
NOMINAL VOLTAGE :
AC 250V
NOMINAL CURRENTS :
2A
GLASS COVER :
soda-lime / high borosilicate glass
WORKING TEMP. :
T400
TEMINAL SIZE :
FASTON 6.3 x 0.8
Description

Description:

We design several glass cover styles, such as full-transparent style, semi-transparent with frosted, and full-frosted etc. Different style glass cover together with different power lamp bulb would show different brightness effects. Generally we suggest that our clients could choose the semi-transparent with frosted glass cover style oven lamp for mini oven, because the soft brightness would not dazzling the user’s eyes. We suggest that our clients could choose the full-transparent glass cover style oven lamp for free standing style oven or gas cooker, because the bright light could supply user enough brightness. And the full-frosted glass cover style oven lamp was exclusive designed for professional cooking, the abundant and comfortable brightness is the best love of cooks.

Specifications:

ITEM INFORMATION NOTE
TYPE G9 STANDARD
NOMINAL VOLTAGE AC 250V BY TUV
NOMINAL CURRENTS 2A BY TUV
WORKING VOLTAGE AC 110~220V 50/60 Hz
VOLTAGE RESISTANCE > AC 450V
LIGHTING POWER 25w
WORKING TEMP. T300
WORKING LIFE > 1000 hours Under T300
TERMINAL
RAW MATERIAL Galvanized steel / stainless steel / copper
SIZE Faston 6.3x 0.8
GLASS COVER
RAW MATERIAL soda-lime / high borosilicate glass
APPERANCE Bowl / hemisphere / polygon
SIZE 40 /41 /43 /54 mm
COLOR Full-transparent / semi-frosted
LAMP HOLDER
RAW MATERIAL high frequency porcelain
COLOR bright white
FIXING RING
RAW MATERIAL stainless steel - 304
COLOR bright silver
E14 METALLIC RING
RAW MATERIAL galvanized steel / copper
COLOR bright silver

Application:

Electrical and standard ovens, microwave oven and similar places subject to medium operating temperatures. Available for these equipment luminaires fitted in different positions such as downlighter, side-light and backlight.

Advantages:

Good high temperature resistance

To guarantee that our oven lamp products could operate well under around 300 degrees centigrade environments, we had made many necessary measures. First, we select the good quality materials with good high temperature resistant properties as the raw material for oven lamp products. These materials are all have very high fusion point. (see below talbe) We also use the advanced machines and production technologies to increase the parts’ high temperature resistant properties. With the current level of sealing material and sealing technology of lamp bulb, the incandescent lamp bulb’s max temperature resistant property could reach 350 degrees centigrade. And the halogen lamp bulb’s max temperature resistant property could reach 400 degrees centigrade. So we could ensure that our products could work well in common 300 degrees centigrade oven or gas cooker.

component Raw material Fusion point of material
Glass cover Soda-lime / high borosilicate glass > 600 degrees centigrade
Lamp holder High frequency porcelain > 1500 degrees centigrade
Fixing ring Stainless steel - 304 > 1500 degrees centigrade
Lamp bulb high borosilicate glass > 600 degrees centigrade
copper > 3000 degrees centigrade
tungsten filament > 3000 degrees centigrade

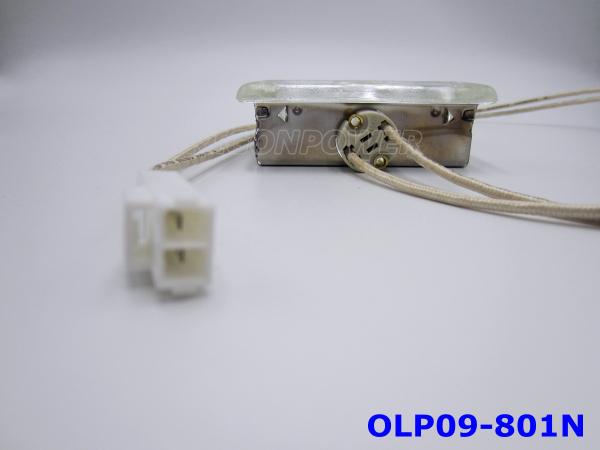

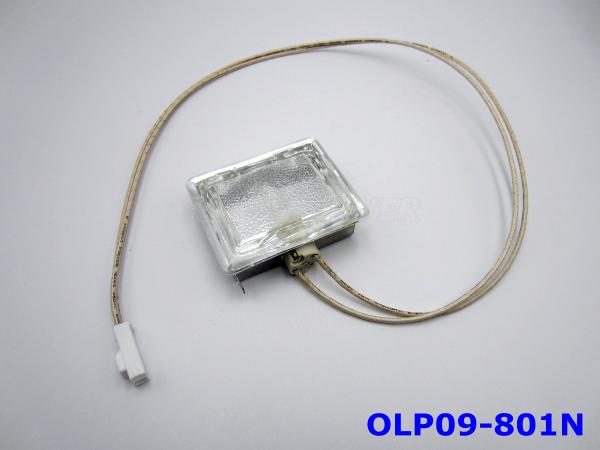

G9 Oven Lamp Holder OLP09-801N With Bowl / Hemisphere / Polygon Cover
