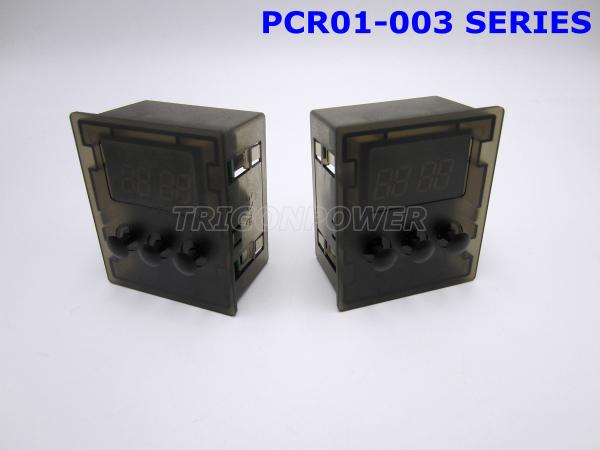

3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
Specifications
Brand Name :
TRIGONPOWER
Model Number :
3key-4
Certification :
TUV_SUD, CE
Place of Origin :
P.R.CHINA
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500,000 pcs/ month
Delivery Time :
45 days after order confirmed
Packaging Details :
200 pcs / carton; 16000 pcs / pallet
PRODCUT CODE :
3key-4
DIGITAL INPUT :
MANUAL INPUT
INPUT POWER :
AC 110~127V / AC 220~240V
WORKING FREQUENCY :
50 / 60 HZ
WORKING TEMP. :
T125 max
INPUT TEMINAL :
FASTON 6.3 X 0.8 3
Description

Faston 6.3 X 0.8 3 Solid Buttons Oven Digital Timer 3key-4

Description:

Easy to install, clean, and maintenance

We set a elastic snap joint device on the housing, so you could easily install it in or remove it from the oven’s front panel the gas cooker.

And the surface of the product is very smooth, it is convenient for clean and maintenance.

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances

Specification:

TYPE DIGITAL TIMER
PRODUCT STYLE 3 BUTTONS
PRODCUT CODE PRC01-003
DISPLAY INTERFACE LCD
DIGITAL INPUT MANUAL INPUT
BUTTON STYEL SOLID BUTTON
INPUT POWER AC 110~127V / AC 220~240V
ELECTRIC PARAMETERS 10A/AC 125V
10A/AC 250V
10A/DC 30V
10A/DC 28V
WORKING FREQUENCY 50 / 60 HZ
WORKING TEMP. T125 max
HOUSING MATERIAL NYLON (PA66)
HOUSING COLOR TRANSPARENT BROWN
GLOW WIRE TEST GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS UL-94-V0
INPUT TEMINAL TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT TERMINAL TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT QUANTITY 1

Good safety properties

1) Good high voltage resistance.

All of the shielding parts have good insulation properties.

COMPONENTS RAW MATERIAL VOLTAGE. RESISTANCE
Housing nylon (PA66) > AC 600V
Relay nylon (PA66) > AC 600V

2) Good heat and fire resistance.

All of the non-metallic material could pass the heat and fire resistance test of GWT 750 and GWIT 775.

Our Service:

1. Strong OEM ability. We can open the new mold according to customers' idea.
2. Strong team of engineer.Our engineer can develop the IC programme.
3. Strong QC team;
4. Factory price and good quality control system;
5. Fast delivery time and samples lead time;
6. High sales efficiency.We can answer your questions and inquiry during 24 hours.

3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean

3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean

3 Solid Buttons Oven Digital Timer 3key-4 Faston 6.3 X 0.8 Easy Install / Clean
