Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Nylon Material Oven Control Switch Anti Vandal With Good Insulation Performance
Specifications
Brand Name :
TRIGONPOWER
Model Number :
SWH01-001-2
Certification :
CE,RoHs
Place of Origin :
P.R.CHINA
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300K SETS / MONTH
Delivery Time :
45 DAYS AFTER ORDER CONFIRMED
Packaging Details :
CARTON / PALLET
TYPE :
3 position rotary switch
CODE :
SWH01-001-2
WORKING TEMP. :
T150 max
HOUSING MATERIAL :
NYLON (PA66)
GLOW WIRE TEST :
GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS :
UL-94-V0
Description

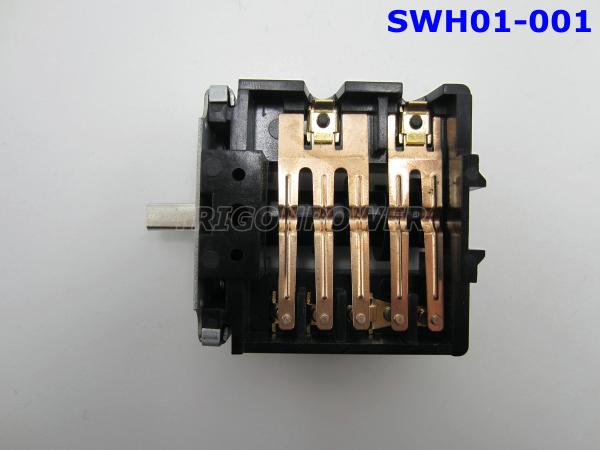

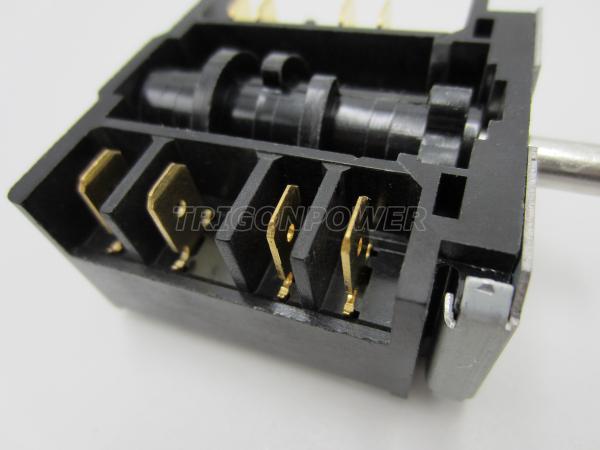

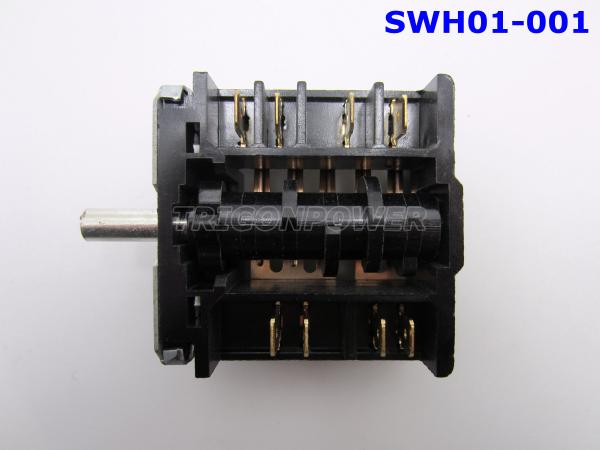

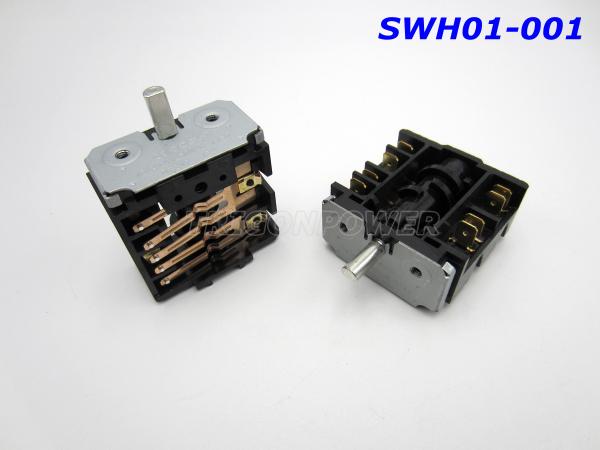

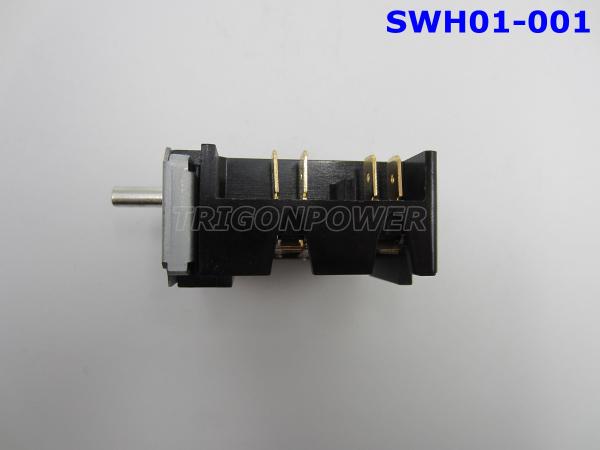

Nylon Oven Control Switch SWH01-001-2

Description:

The most important parts are the transfer mechanism, movable contact and stationary contact. A reliable transfer mechanism could guarantee the long work life of a switch. In order to guarantee the reliable conductivity of a switch, we usually use the high quality and high purity metallic silver as the raw material to produce the movable contact and stationary contact.

Specification:

TYPE OVEN CONTROL SWITHC
APPERANCE STYLE ROTARY
PRODUCT CODE SWH01-001-2
INPUT STYLE ROTARY KNOB
OUTPUT STYLE TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT QUANTITY 4~12
ELECTRIC PARAMETERS 16(4)A/AC250V
16(5)A/AC250V
16(6)A/AC250V
10(2)A/AC400V
WORKING FREQUENCY 50 / 60 HZ
WORKING TEMP. T150 max
HOUSING MATERIAL NYLON (PA66)
GLOW WIRE TEST GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS UL-94-V0

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances

Advantages:

  • Good safety performance
  • Good insulation performance
  • Good high temperature resistant property
  • Good durability
  • Good material with good flame class
  • Easy for device’s installation
  • Easy for cleaning and maintenance

Easy to install, clean, and maintenance

We set a elastic snap joint device on the switch, so you could easily install it in the gas cooker or remove it from the gas cooker.

And the surface of the product is very smooth, it is convenient for clean and maintenance.

Working stably under high temperature

The raw materials of the parts for switch all have good high temperature resistance properties. So the switch could work stably under the high temperature, at least 120 degrees centigrade.

COMPONENTS RAW MATERIAL TEMP. RESISTANCE NOTE
Housing, coil frame nylon (PA66) >120 ℃
contacts silver >900 ℃ (Teflon)
terminal Galvanized steel >1500 ℃
