Specifications
Brand Name :
TRIGONPOWER
Model Number :
SMR01-A
Certification :
VDE, CE, ROHS
Place of Origin :
CHINA,P.R.
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
> 100K / month
Delivery Time :
35days after order confirmed
Packaging Details :
carton / pallet
TYPE :
shaded pole motor
STYLE :
Synchronous Reduction Motor
CODE :
SMR01-A
RATED VOLTAGE :
AC 110~240V
RATED FREQUENCY :
50/60HZ
RATED OUTPUT POWER :
4~6W
WORKING TEMPERATURE :
T125
Description

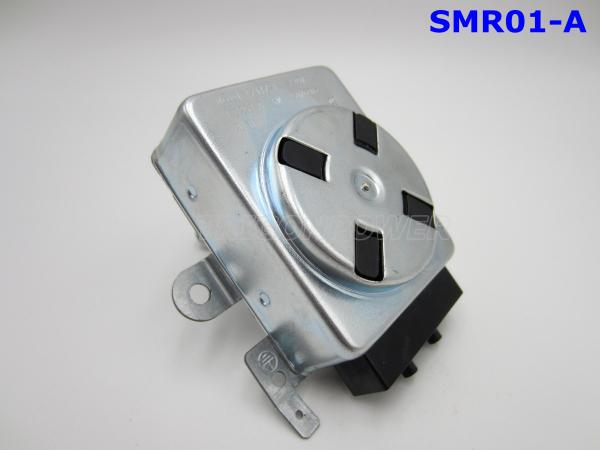

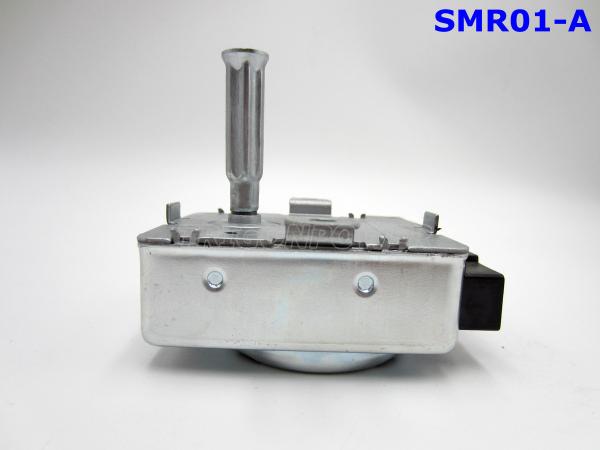

Oven Fan Motor AC 220V~240V SMR01-A

Description:

The motor’s developments and designs are based on the theory of electro-magnetic induction. With the help of the precious and accurate gear-drive system, the enough torque which is generated by electro-magnetic induction could be stably transferred to the output system. Different motor could supply different output type, such as torsion for fork spit or abundant wind power for electrical oven.

In our production, we use the exclusive materials and special treatment methods in the manufacture process of gears, magnetic cylinder, and coils. With these measures, we could guarantee that our motor could stably operate long time under the high temperature work environment.

GRILL MOTOR. It is a kind of motor which could supply the driving force to rotate fork spit stably. It could stably supply more than 16kgf torque and 2~3rpm rotating speed.

FAN MOTOR. It is a kind of motor with steel fans. It could supply enough and stable

Specification:

Type Synchronous Motor
Use Classification Grill Motor
Using Occasion Oven Machine
Nominal Voltage AC 110~127V / AC 220V~240V
Nominal Frequency 50 / 60 HZ
Output Power 4~6W
Output Rpm 1.8~2.2
Output Torque >18kgf
Working Temp. T 125
Product Code SMR01/02
Terminal FASTON 0.8X6.3 / 2 PCS
Ground Connector YES
Insulation Class H CLASS

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances

Advantages:

Long working lifetime

  • We choose the best raw material to manufacture all of the parts for motors. The good raw material is the base for a excellent product with good quality. The good raw material is also the base for long working life time.
  • Lubricating oil or lubricating grease could reduce the friction, heat and noise during motor operation. And the friction and heat would damage the work quality of motor and reduce the worklife. So we consistently use the high quality lubricating oil or lubricating grease to guarantee our product’s long working lifetime.
  • In our production, we have used many advanced machines, tools and technologies to manufacture products. For example, we use the precise progressive dies to produce the small metallic parts. So the uniformity of our products is very good. It could increase the working lifetime.

Working stably under high temperature

Many of our motor products would work under high temperature environments. So we choose the raw materials for motor which all have good high temperature resistance properties. At the same time, we also choose the good quality oil or grease with high temperature resistance to guarantee the Lubrication. So the motors could work stably under the high temperature, at least 125 degrees centigrade.

COMPONENTS RAW MATERIAL TEMP. RESISTANCE
Metallic parts (shell, gears, etc.) Galvanized steel / stainless steel >1500 ℃
Coil former nylon (PA66) >200 ℃
Wire for coil copper >1000 ℃
Oil or grease >125 ℃
