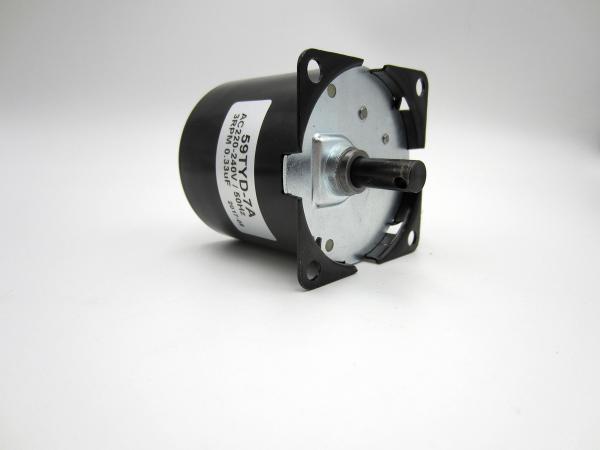

Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Professional Stove Fan Motor , Synchronous Gear Motor For Oven Machine SMR05
Specifications
Brand Name :
TRIGONPOWER
Model Number :
SMR05
Certification :
VDE, CE, ROHS
Place of Origin :
CHINA,P.R.
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
> 100K / month
Delivery Time :
35days after order confirmed
Packaging Details :
carton / pallet
TYPE :
AC synchronous motor
Use Classification :
Stove Motor
CODE :
SMR05
RATED VOLTAGE :
AC 110~240V
RATED FREQUENCY :
50 / 60HZ
WORKING TEMPERATURE :
T125
Description

Multiple styles

  • Synchronous motor for oven
  • Synchronous motor for stove or barbecue
  • Fan(shaded pole) motor for oven
  • Cooler (axial) fan for induction cooker

Specification:

Type Synchronous Motor
Use Classification Stove Motor
Using Occasion Stove Barbecue
Nominal Voltage AC 110~127V / AC 220V~240V
Nominal Frequency 50 / 60 HZ
Output Power 20~30W
Output Rpm 2~3
Output Torque >35kgf
Working Temp. T 125
Product Code SMR05
Terminal FASTON 0.8X6.3 / 2 PCS
Ground Connector YES
Insulation Class H CLASS

Easy to install, clean, and maintenance

All of motor products are all manufactured according to the standard appearance and install dimension. So you could easily install or remove the motors from the oven machine. The motor appearance is a sealed box, it could keep things like dust out. And the surface of the product is very smooth, it is convenient for clean and maintenance.

Working stably under high temperature

Many of our motor products would work under high temperature environments. So we choose the raw materials for motor which all have good high temperature resistance properties. At the same time, we also choose the good quality oil or grease with high temperature resistance to guarantee the Lubrication. So the motors could work stably under the high temperature, at least 125 degrees centigrade.

COMPONENTS RAW MATERIAL TEMP. RESISTANCE
Metallic parts (shell, gears, etc.) Galvanized steel / stainless steel >1500 ℃
Coil former nylon (PA66) >200 ℃
Wire for coil copper >1000 ℃
Oil or grease >125 ℃
