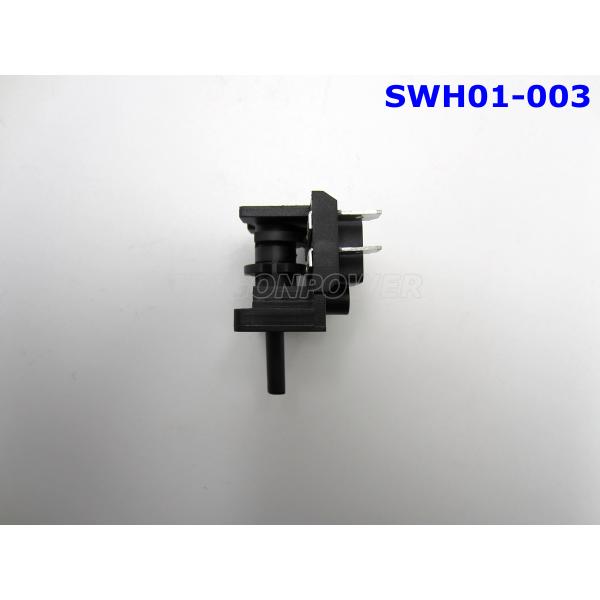

Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch
Specifications
Brand Name :
TRIGONPOWER
Model Number :
SWH01-003-1
Certification :
CE,RoHs
Place of Origin :
P.R.CHINA
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300K SETS / MONTH
Delivery Time :
45 DAYS AFTER ORDER CONFIRMED
Packaging Details :
CARTON / PALLET
CODE :
SWH01-003-1
INPUT STYLE :
ROTARY KNOB
OUTPUT STYLE :
TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT QUANTITY :
4~12
WORKING FREQUENCY :
50 / 60 HZ
WORKING TEMP. :
T150 max
HOUSING MATERIAL :
NYLON (PA66)
GLOW WIRE TEST :
GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS :
UL-94-V0
Description

high reliability Oven Control Switch FASTON 6.3 X 0.8

Description:

We manufacture the connector by the high quality silver material. The good silver connector with the lowest resistance value could reduce the circuit loss and circuit heat to increase the working life of the button switch. The raw material of modular structure transmission mechanism, press cap and housing is high quality nylon material with good flame class. So these plastic parts could smoothly and stably operate under high temperature. Good fire resistance and high voltage resistance could guarantee the users’ safety.

Specification:

TYPE OVEN CONTROL SWITHC
APPERANCE STYLE ROTARY
PRODUCT CODE SWH01-003-1
INPUT STYLE ROTARY KNOB
OUTPUT STYLE TERMINAL PIN, FASTON 6.3 X 0.8
OUTPUT QUANTITY 4~12
ELECTRIC PARAMETERS 16(4)A/AC250V
16(5)A/AC250V
16(6)A/AC250V
10(2)A/AC400V
WORKING FREQUENCY 50 / 60 HZ
WORKING TEMP. T150 max
HOUSING MATERIAL NYLON (PA66)
GLOW WIRE TEST GWT 850 & GWIT 775 (IEC60335-1 PART 30.2)
FLAME CLASS UL-94-V0

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances

Working stably and reliably, and long working lifetime

1) In button switch’s production, we not only choose the high level quality raw material but also use the advanced manufacture technologies and machines to produce these parts. And these parts all have good surface quality and accurate dimension. So the button switch products could operate smoothly.

2) The electrical conductor materials are all good quality material, such as the silver connectors. The good conductor materials could reduce the circuit loss and circuit heat to increase the working life of the button switch.

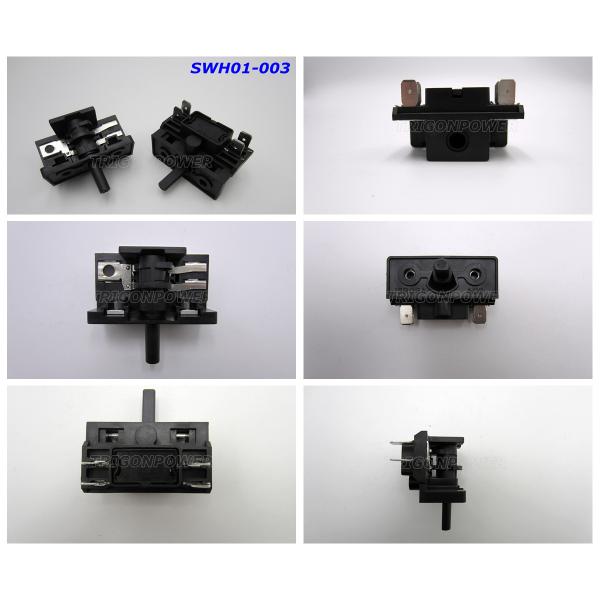

Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch

Black Electric Stove Switch , High Voltage Resistance 3 Position Rotary Switch

Product List:

Code

Electrical

Datas

 Style

Button

Size

 Color Note
SWH02-170-01-A1 AC 250V 10A T150 Round Button Switch Ф17.0 Black Print Fork logo
SWH02-170-01-A2 AC 250V 10A T150 Round Button Switch Ф17.0 Black Print lamp logo
SWH02-170-01-A3 AC 250V 10A T150 Round Button Switch Ф17.0 Black Print Ignition logo
SWH02-170-02-A1 AC 250V 10A T150 Round Button Switch Ф17.0 White Print Fork logo
SWH02-170-02-A2 AC 250V 10A T150 Round Button Switch Ф17.0 White Print lamp logo
SWH02-170-02-A3 AC 250V 10A T150 Round Button Switch Ф17.0 White Print Ignition logo
SWH02-170-03-A1 AC 250V 10A T150 Round Button Switch Ф17.0 Brown Print Fork logo
SWH02-170-03-A2 AC 250V 10A T150 Round Button Switch Ф17.0 Brown Print lamp logo
SWH02-170-03-A3 AC 250V 10A T150 Round Button Switch Ф17.0 Brown Print Ignition logo
SWH01-145-01-A1 AC 250V 10A T150 Round Button Switch Ф14.5 Black Print Fork logo
SWH01-145-01-A2 AC 250V 10A T150 Round Button Switch Ф14.5 Black Print lamp logo
SWH01-145-01-A3 AC 250V 10A T150 Round Button Switch Ф14.5 Black Print Ignition logo
SWH01-145-02-A1 AC 250V 10A T150 Round Button Switch Ф14.5 White Print Fork logo
SWH01-145-02-A2 AC 250V 10A T150 Round Button Switch Ф14.5 White Print lamp logo
SWH01-145-02-A3 AC 250V 10A T150 Round Button Switch Ф14.5 White Print Ignition logo
SWH01-145-03-A1 AC 250V 10A T150 Round Button Switch Ф14.5 Brown Print Fork logo
SWH01-145-03-A2 AC 250V 10A T150 Round Button Switch Ф14.5 Brown Print lamp logo
SWH01-145-03-A3 AC 250V 10A T150 Round Button Switch Ф14.5 Brown Print Ignition logo
SWH01-175-01-A1 AC 250V 10A T150 Round Button Switch Ф17.5 Black Print Fork logo
SWH01-175-01-A2 AC 250V 10A T150 Round Button Switch Ф17.5 Black Print lamp logo
SWH01-175-01-A3 AC 250V 10A T150 Round Button Switch Ф17.5 Black Print Ignition logo
SWH01-175-02-A1 AC 250V 10A T150 Round Button Switch Ф17.5 White Print Fork logo
SWH01-175-02-A2 AC 250V 10A T150 Round Button Switch Ф17.5 White Print lamp logo
SWH01-175-02-A3 AC 250V 10A T150 Round Button Switch Ф17.5 White Print Ignition logo
SWH01-175-03-A1 AC 250V 10A T150 Round Button Switch Ф17.5 Brown Print Fork logo
SWH01-175-03-A2 AC 250V 10A T150 Round Button Switch Ф17.5 Brown Print lamp logo
SWH01-175-03-A3 AC 250V 10A T150 Round Button Switch Ф17.5 Brown Print Ignition logo
SWH01-220-01-A1 AC 250V 10A T150 Round Button Switch Ф22.0 Black Print Fork logo
SWH01-220-01-A2 AC 250V 10A T150 Round Button Switch Ф22.0 Black Print lamp logo
SWH01-220-01-A3 AC 250V 10A T150 Round Button Switch Ф22.0 Black Print Ignition logo
SWH01-220-02-A1 AC 250V 10A T150 Round Button Switch Ф22.0 White Print Fork logo
SWH01-220-02-A2 AC 250V 10A T150 Round Button Switch Ф22.0 White Print lamp logo
SWH01-220-02-A3 AC 250V 10A T150 Round Button Switch Ф22.0 White Print Ignition logo
SWH01-220-03-A1 AC 250V 10A T150 Round Button Switch Ф22.0 Brown Print Fork logo
SWH01-220-03-A2 AC 250V 10A T150 Round Button Switch Ф22.0 Brown Print lamp logo
SWH01-220-03-A3 AC 250V 10A T150 Round Button Switch Ф22.0 Brown Print Ignition logo
