4 Brass Pins Multi Position Rotary Switch Metal Spindle For Electric Stove
4 Brass Pins Multi Position Rotary Switch Metal Spindle For Electric Stove
Specifications
Brand Name :
CHIMAI
Model Number :
XZ1-1
Certification :
TUV
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100k/pcs/month
Delivery Time :
7 work days
Packaging Details :
inner box
Material :
pa66
Color :
black
Termianl :
iron
Current :
16A
Shaft :
plastic
Description

Multi Position Rotary Switch 4 Brass Pins Metal Spindle For Oven

Oven Selector Function Rotary Switch
Norminal Parameter:

the PF material, Control switch number 0.1.2.3.4.5-speed control switch to control the different ratings of the three series or in parallel heating conductors, It can produce 4 different heat output power for different cooking process, the heating requirements of the different quantities of food.
Applies to electric oven, electric stove, and kitchen appliances.Rating:8A 125/250VAC(CUL) 12A-8(3)A

Rating: 8A 125/250VAC(CUL)
12A-8(3)A 250V-uT125/55(ENEC17)
ELECTRICAL:
INITIAL CONTACT RESISTANCE: 30mΩ MAX.
OPERATION FORCE: 500±200gf
INSULATION RESISTANCE: 100MΩ MIN. 500VDC
ENDURANCE: 10,000CYCLES
WITHSTAND VOLTAGE: 1 KVAC FOR 1MINUTE
MATERIAL:
TERMINAL HOUSING: NYLON 66(94V-0)
ACTUATOR: NYLON 66(94V-0)
CONTACT: Ag Alloy

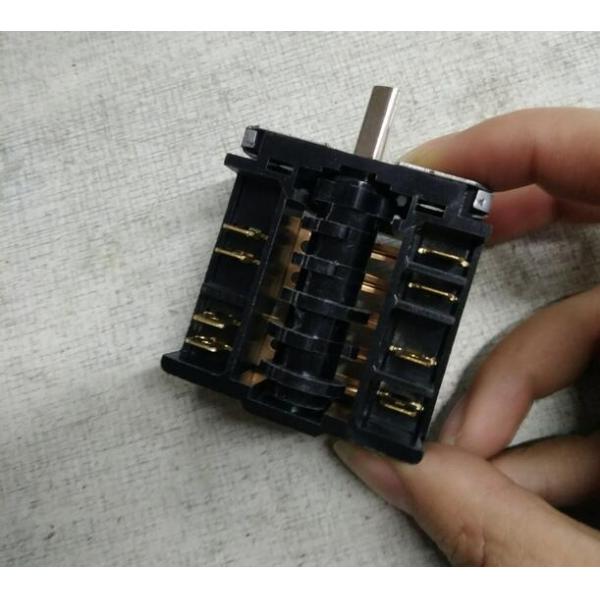

4 Brass Pins Multi Position Rotary Switch Metal Spindle For Electric Stove
