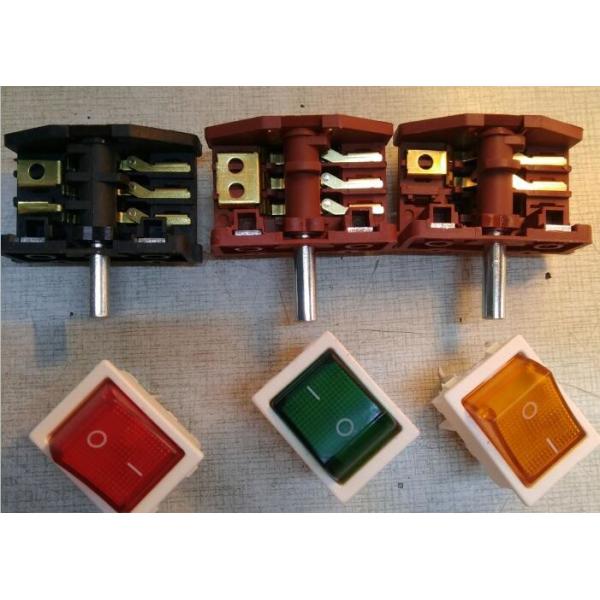

Red 4 Position Rotary Switch , 16A Oven Selector Rotary Switch Metal Spindle
Red 4 Position Rotary Switch , 16A Oven Selector Rotary Switch Metal Spindle
Specifications
Brand Name :
CHIMAI
Model Number :
XZ1-1
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100k/pcs/month
Delivery Time :
7 work days
Packaging Details :
inner box
Material :
pa66
Color :
red
Termianl :
copper
Current :
16A
Contacts :
copper
Application :
Home Appliance
Description

Red Oven Selector Switch 16A Oven Switch Metal Spindle 4 Position

RS series functional rotary switch is developed for household appliances and mechanical equipment. Using multiple-contact combination offers a variety of circuits and achieve the same or different function selection.CAM mechanical on/off mechanism is of safe and reliable.
Application: Microwave oven,Induction cooker,Electronic stove,Electronic oven,Baking oven etc.
Specifications: 85mm(L) / 50mm(W) / 26mm(H)
Operating Requirement: Rated voltage: AC 250V, Rated current: 16A; Environment temperature should be less than 150°C
Life Cycle: 10000 times.

Rating: 8A 125/250VAC(CUL)
12A-8(3)A 250V-uT125/55(ENEC17)
ELECTRICAL:
INITIAL CONTACT RESISTANCE: 30mΩ MAX.
OPERATION FORCE: 500±200gf
INSULATION RESISTANCE: 100MΩ MIN. 500VDC
ENDURANCE: 10,000CYCLES
WITHSTAND VOLTAGE: 1 KVAC FOR 1MINUTE
MATERIAL:
TERMINAL HOUSING: NYLON 66(94V-0)
ACTUATOR: NYLON 66(94V-0)
CONTACT: Silver

Red 4 Position Rotary Switch , 16A Oven Selector Rotary Switch Metal Spindle
