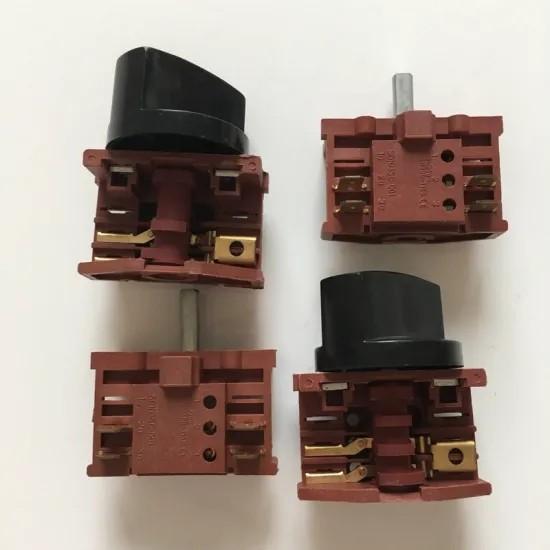

Factory OEM Long Service Life SD Serie AC250V/16A T150 Rotary Switch
Factory OEM Long Service Life SD Serie AC250V/16A T150 Rotary Switch
Specifications
Brand Name :
CHIMAI
Model Number :
SD
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100k/pcs/month
Delivery Time :
7 work days
Packaging Details :
inner box
Material :
PA
Color :
red
Termianl :
copper
Current :
16A
Contacts :
silver
Shaft :
metal
Description

Factory OEM Long Service Life SD Serie AC250V/16A T150 Rotary Switch

Product Description


1. Product introduction:


SD series rotary switch is mainly used in kitchen utensils & appliance, such as the electric oven, gas oven, electric cooker and so forth. Besides, the rotary switch of this serie can also be applied to marine machinery.

2. Working principle:

Using multiple-contact combination offers a variety of circuits and achieve the same or different function selections.

3. Application:

Microwave oven,induction cooler,electronic stove,electronic oven,baking oven etc.

4. Operating requirement:

1). Rated voltage: AC 250V,
2). Rated current: 16A ,18A, 32A,
3). Environment temperature: should be less than 150degrees
4). Life cycle: 10000 times.

Rotary Switch
Rating 16A 250VAC ; 20A 125VAC T125
Housing Material : PA66
Push Button Material: PC
Waterproof Cover(Optional): PVC
Contact Resistance ≤50MΩ
Insulation Resistance ≥100MΩ
Withstand Voltage 1500VAC/10S
Endurance 1E4
Ambient temperature T125


FAQ

Application: The products are widely used in electronic instruments, automatic machine controllers, electrical gardening engines, household appliances and electronic toys, etc.
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every step with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
