3 Pole Illuminated Momentary Rocker Switch 120 Voltage Double Throw
3 Pole Illuminated Momentary Rocker Switch 120 Voltage Double Throw
Specifications
Brand Name :
CHIMAI
Model Number :
KCD4
Certification :
CE,ROSH,TUV
Place of Origin :
CHINA
MOQ :
100PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100k/pcs/month
Delivery Time :
7 work days
Packaging Details :
plastic bag
Material :
pa66
Lamp :
lamp
Color :
yellow
Terminal :
4 pins
Current :
15A
Description

120V Double Throw 3 Pole Illuminated Momentary Rocker Switch

Advantage
-------------------------------
NO.1 Good quality!
NO.2 10 years manature!
NO.3 Many types of circuit breaker switch we can supply
NO.4 High quality, competitive price, great service!
NO.5 The best indicator light at the best price!


The Main Technical Parameters
----------------------------------------------------------------------------------------------
Item 16A ON-OFF Lamp Double 6 Pins Rocker Switch With Dot
Material PA66 /PC
Rating 20A 125VAC/15A 250VAC
Single package size 18X16X8 CM/500PCS
Contact Resistance ≤35MΩ
Insulation Resistance ≥500VDC100mΩ
OperatingTemperature -25C~+85C
Ambient Temperature -10ºC~+85 ºC
Dielectric Strength 1500VAC,1 Minute
Type ROCKER SWITCH
Elactric life >10000 Cycles
Electrical Life >50000 Cycles
Terminals & Mid pins Copper with silver plated
Contacts Copper with compound silver
Terminals & Mid pins Copper with silver plated


Technical Parameters
---------------------------------------------------------------
Experimental Current Starting Condition Experimental Time Expect Result
1In Cold Start 1h Not Trip
1.5In Followed The Experiment t<=1h Trip
2In Cold Start (t1)2s≤t≤60s(t2) Trip
6In Cold Start (t3)0.1s≤t≤2ss(t4) Trip
10In Cold Start (t5)0.02s≤t≤0.5s(t6) Trip


APPLICATION
-------------------------------------------

16A ON-OFF Lamp Double 6 Pins Rocker Switch With Dot is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
--Illuminated rocker switch, lighted rocker switch, waterproof rocker switch, 12V rocker switch, on off rocker switch, on off switch, 16a rocker switch, dpdt rocker switch, kcd2 rocker switch, kcd4 rocker switch, kcd1 rocker switch, kcd3 rocker switch, boat switch.

PRODUCT SHOW

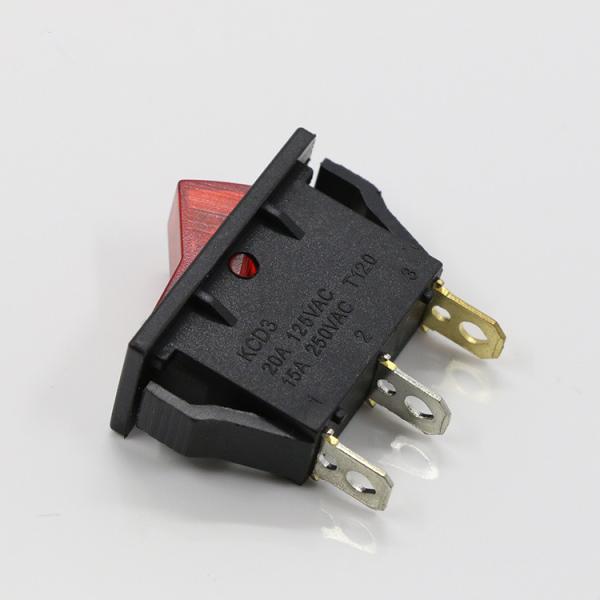

3 Pole Illuminated Momentary Rocker Switch 120 Voltage Double Throw
