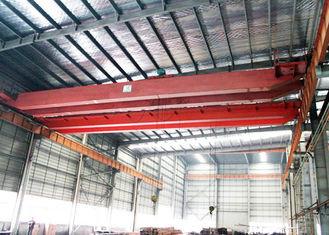

Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz
Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz
Specifications
Brand Name :
Major
Model Number :
QD
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Electric trolley, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Power Supply :
380V 50Hz Three-phase
Rated Loading Capacity :
50/10t
Span :
5--36m
Control Method :
Cabin, Pendant Control And Remote Control
Feature :
Double Girder EOT Bridge Overhead Crane
Lifting Height :
30m
Description

50 T Double Girder Overhead Travelling Cranes for Industrial workshop

Overhead cranes sometimes also called bridge cranes and eot crane, which are cranes with a hoist or winch traveling along the bridge beween parallel runways. They are designed to meet the medium to heavy industrial lifting requirements, covering all parts of the manufacturing process. Compared with single girder overhead crane, the double grider overhead crane can support biger lift capacity, and more suitable for heavy work duty.

Lifting Capacity T 5 10 16/3.2 20/5 32/5 50/10
Span m 10.5-31.5
Speed Main Hook Lifting A5 m/min 11.3 8.5 7.9 7.2 7.5 5.9
A6 15.6 13.3 13 12.3 9.5 7.8
Aux. Hook Lifting 16.7 19.5 19.5 10.4
Traveling of Crab 37.2 43.8 44.6 44.6 42.4 38.5
Traveling of Trolley A5 89.8/91.8 90.7/91.9/84.7 84.7/87.6 84.7/87.6 87/74.2 74.6
A6 92.7/93.7 115.6/116/112.5 112.5/101.4 112.5/101.4 101.4/101.8 75/76.6
Operational Model Cabin; remote control; ground handle
Working Duty A5,A6
Power Supply Three-phase A.C. 380V, 50Hz

Safety:

No. Safety Measures Foundation
1. Loss of phase /voltageprotection When the voltage/phase is too low, the electricity will disconnect
2. Over Voltage, over current protection When the voltage/phase is too big, the electricity will disconnect
3. Overload Limit Switch When the lift capacity is more than the max rated lift capacity, the electricity will disconnect, crane will stop work
4. Weight limit Supervise the decrease of hook. There is a limit height. The hook cannot fall any more if reach this limit
5. Fire limit Supervise the up and down limit position of Hook. Avoid the over increase and over decrease, protect hoist
6. Crane Travel Limit Switch Supervise the travel of crane, and stop crane travel more than rated travel distance. Keep Safe

Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz

Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz

Processing Facility

Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz
Main product showcase
Travelling Double Girder Overhead Crane 50 T For Industrial Workshop 380V 50Hz
