Pendant Control Gantry Overhead Crane , Electric Travelling Overhead Crane Lifting Devices
Pendant Control Gantry Overhead Crane , Electric Travelling Overhead Crane Lifting Devices
Specifications
Brand Name :
Major
Model Number :
QD
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Electric trolley, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Power Supply :
380V 50Hz Three-phase
Rated Loading Capacity :
5~450t
Span :
5--36m
Control Method :
Cabin, Pendant Control And Remote Control
Feature :
Double Girder EOT Bridge Overhead Crane
Lifting Height :
30m
Description

Schneider Electric travelling Double girder ton overhead crane

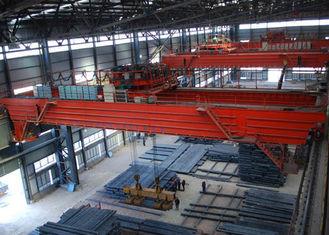

Double girder electric overhead crane is composed of bridge frame, trolley, crane travelling mechanism and electric equipment and is applicable for the workshops, freight yards and warehouses in stations, ports and mining enterprises, hoisting, transporting and loading all kinds of materials in the fixed spans.

According different environment and purposes, the crane can derives many models such as low speed, explosion proof, insulation, electromagnetic, bucket grab, double trolleys and dual purposes, and triplicate purposes. Our company manufactures all kinds of double girder electric overhead crane.

Specification of double girder overhead crane
Loading capacity 5 ~ 450t
Lifting height 16~ 25 m or customized
Lifting speed

Single speed: 1 ~ 12.5 m/min; or customizd

Variable frequency speed: 0.1 ~ 12.5 m/min; or customized
Span 10.5~31.5 m/min
Lifting mechanism Wire rope hoist or electric chain hoist
Working class A5 ~ A8
Working temperature -20 ~ 45 ℃
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54 IP55 IP65
Control way Ground handle control(Push button),wireless remote control,cabnient control
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow,Red or Customzied
Production Describle Double Girder Overhead Crane also called double girder or double beam bridge crane,also called EOT crane (Electric overhead travelling crane).Double beam crane widely used in workshop, warehouse and yard over lifting equipment lifting of materials. Double girder overhead crane widely used Mechanical processing workshops, metallurgical auxiliary workshop, warehouse, assembly workshop and Maintenance workshop, lifting molten metal metallurgy, casting, etc.
Double beam overhead crane including LH model double girder overhead crane with electric hoist,QD model double girder hook overhead crane,QC model electromagnetic overhead crane,QZ model grab overhead crane,YZ model,QDY model,QB model.
Advantage

1. Customized design overhead crane;

2. Support OEM / ODM for our clients;

3. Steel material adopt high quality carbon steel Q235 or Q345B;

4. Easy to install,operate,maintain;

5. Crane drive: IP54 or IP44,level F insulation;

6. With senior technical engineer team and perfect sales service.

Features
1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Designed according to your reques
