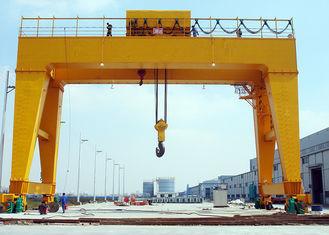

High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
High Strength Workshop Gantry Crane Double Girder Heavy Lift FEM DIN Standard
Specifications
Brand Name :
Major
Model Number :
MG
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
10000Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Nude packing or Wooden Packing
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Rated Loading Capacity :
10t, 20/5t, 32/5t, 50/10t, Or Other
Span :
18～35m, 18～26m, 26～35m, Or Other
Control Method :
Cabin, Pendant Control And Remote Control
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Product Name :
High Strength Double Girder Gantry Crane
Lifting Height :
10m, 12m Or Other
Description

High Strength Double Girder Gantry Crane Heavy Lift Crane FEM / DIN Standard

Description

The FEM/DIN double girder gantry crane adopt modularization design for lifting mechanism with light weight, alloy-steel forging wheels and intelligent control.

Features:

1. Adopt modularization design for lifting mechanism, FEM/DIN standard, light weight

2. High-strength alloy-steel forging wheels

3. No welded legs for profile steel

4. Capsule cab with broad vision

5. Rectangular steel- pipe handrail

6. Hard tooth surface reducer imported from Germany

7. Power supplied by engineering drag chain

8. World's leading anti-sway control technology

10. Advanced fabricated technology

11. Low-energy and maintenance-free

Specification

Capacity

(t)

Span

(m)

Lifting

Height

(m)

Work

Duty

Main Hoist

Speed
(m/min)

Aux.Hoist

Speed
(m/min)

Cross Travel

Speed
(m/min)

Long Travel

Speed
(m/min)

 Rail Total Power (Kw)
10 18～35 10 A5 0.78-7.8 　 3.3-33 3-30 43kg/m 21.74
20/5 18～35 10 A5 0.6-6 0.78-7.8 3.5-35 3-30 43kg/m 39.7
32/5 18～26 10 A5 0.5-5.2 0.78-7.8 3.1-31 3-30 43kg/m 59
26～35 12
50/10 18～26 10 A5 0.4-3.9 0.78-7.8 3.6-36 3-30 43kg/m 71.4
26～35 12
75~1000

Customized
