Rubber Tyred Rail Double Girder Gantry Crane For Railway Construction Yello Blue Q235 Steels
Rubber Tyred Rail Double Girder Gantry Crane For Railway Construction Yello Blue Q235 Steels
Rubber Tyred Rail Double Girder Gantry Crane For Railway Construction Yello Blue Q235 Steels
Rubber Tyred Rail Double Girder Gantry Crane For Railway Construction Yello Blue Q235 Steels
Specifications
Brand Name :
Major
Model Number :
MG
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
10000Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Nude packing or Wooden Packing
Color :
Yello, Blue, etc. By Buyer's Option
Driving :
Electric Motors
Power :
Electricity
Rated Loading Capacity :
50～900t
Span :
4~18m
Control Method :
Cabin, Pendant Control And Remote Control
Feature :
Rubber Tyred Gantry Crane
Lifting Height :
1.2-22m
Description

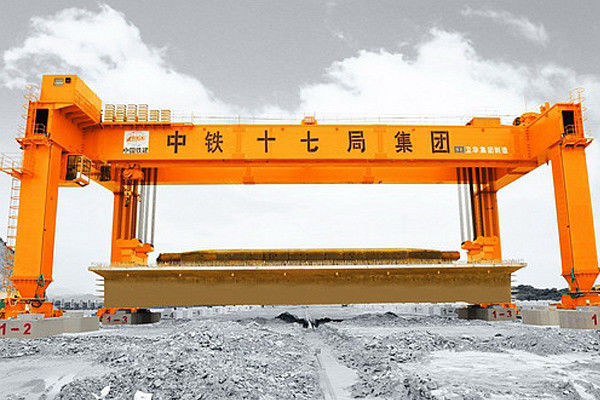

Rubber Tyred Rail Double Beam Gantry Crane For Railway Construction

Gantry Crane for Railway Construction

Description

The gantry crane is specially designed for the span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.

This product consists of main girder, rigid and flexible supporting leg, travelling mechanism, lifting mechanism, electric control system, hydraulic system, driver room, railing, ladder and walking plat.

Features:

1. Rubber tires and rail type;

2. Hydraulic driven of walking, steering and lifting;

3. Walk straight, oblique and rampage;

4. Good adaptability, high working efficiency, small space occupied;

5. Special spreader mainly used for lifting and transporting large concrete beam/bridge;

6. 2 cranes, 2 trolleys with max lifting height 30m;

7. The max wheel load is 22t when lifting 900t’s stuff;

8. 90°shift for rail type crane to achieve horizontal or vertical walking;

9. 4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope ;

10. Accurate positioning for stuff lifting down;

11. Hydraulic push for trolley to realize various lifting and save the cost;

12. For the 4 hoists, it can be single use or combine use of 2 or 4 hoists while the hardware and software are interlocked for operation safety.

Specification:

Type MG
Capacity(t) Main 10 16 20 32 50 75 100
Aux 3.2 5 5 10 20 20
Span 18; 22; 26; 30; 35 30,35 40 16
Lifting height(m) Main 11 12 12 12 22 22 17.5
Aux 16 14 14 24
Lifting speed Main 7.4 9.4 5.8 7.7 7.68 6.25 4.62
(m/min) Aux 11.2 12.6 15 19.8 9.28 9.28
Lifting motor Main YZR200L-8/15 YAR225M-8/22 YAR250M1-8/30 YAR280M-8/55 YZR315S-10/63 YAR315M-10/85 YZR315M-10/85
Aux YZR160L-6/11 YZR160L-6/15 YZR180L-6/15 YZR250M-8/35 YZR250M1-8/35 YZR250M1-8/35
Rail Recommended 43kg/m 43kg/m 50kg/m Qu80 Qu80
Power Three phase AC 380V 50Hz
