10 Ton Single Beam Overhead Crane For Factory Plant 380V 50Hz Three Phase Indoor
10 Ton Single Beam Overhead Crane For Factory Plant 380V 50Hz Three Phase Indoor
Specifications
Brand Name :
Major
Model Number :
LDA
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Single girder gantry crane; Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Power Supply :
380V 50Hz Three-phase
Rated Loading Capacity :
3~28t
Span :
5--31m
Control Method :
Pendant Control And Remote Control
Feature :
Single Girder EOT Bridge Overhead Crane
Lifting Height :
36m
Description

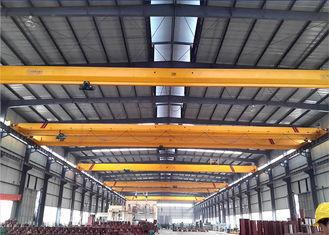

Indoor 10 Ton Single Beam Overhead Crane For Factory Workshop / Plant

Product Description

The single beam crane is small lifting capacity and travel along high I-Steel track.

Single Girder Overhead Crane

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows

1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system

Technical parameter:

Lifting capacity (T) 1,2,3,5,10T 16,20T
Span(M) 5.5-31.5M
Crane travelling mechanism Travelling speed(m/min) 20 30 45 60 75 20 30 45 60 75
Reducer ratio 58.78 39.38 26.36 19.37 15.88 58.78 39.38 26.36 19.37 15.88
Motor Model ZDY21-4 ZDY21-4 ZDY122-4 ZDY131S-4 ZDY112L1-4
Power(kw) 2×0.8 2×1.5 1.5×2 2.2×2 2.2×2
Rotation (m/min) 1380 1380

Lifting mechanism

(electric hoist)&electric hoist travelling mechanism

 Electric hoist model CD1/MD1 MD1/HC
Lifting speed (m/min) 8,8/0.8 7,7/0.7 3.5 3.5/0.35
Lifting height (m) 6 ,9 ,12, 18, 24, 30 12,18,24,30
Travelling speed (m/min) 20(30) 20(30)
Motor Taper Squirrel-cage type Taper Squirrel-cage type
Work duty A3-A5
Power supply 380V 50HZ three phase and as you demand
Wheel diameter 270mm 370mm
Width of trail 37-70mm 37-70mm

10 Ton Single Beam Overhead Crane For Factory Plant 380V 50Hz Three Phase Indoor

Components:
10 Ton Single Beam Overhead Crane For Factory Plant 380V 50Hz Three Phase Indoor
Processing Facility

10 Ton Single Beam Overhead Crane For Factory Plant 380V 50Hz Three Phase Indoor
