Single Beam Workstation Bridge Crane 20 Ton Safety Electric Cabin Pendant Control
Single Beam Workstation Bridge Crane 20 Ton Safety Electric Cabin Pendant Control
Specifications
Brand Name :
Major
Model Number :
LDA
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Single girder gantry crane; Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Power Supply :
380V 50Hz Three-phase
Main Electrical Parts :
Siemens
Rated Loading Capacity :
0.25~15t
Span :
5--29.5m
Product Name :
Single Girder EOT Bridge Overhead Crane
Lifting Height :
36m
Description

20t bridge crane price/20t bridge crane with hoist/20ton crane

Description:

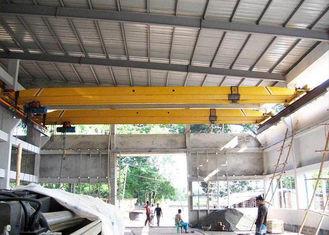

Single girder overhead crane is also called single beam bridge crane, It is consists of the main girder, end girder, electric hoist.

overhead crane is composed of main beam, end carriage, electric hoist(or you can choose chain block), electric power transmission device and operation room(as your demand). Single Girder Overhead Crane is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.

Lifting capacity (T) 1, 2, 3, 5, 10T 16, 20T
Span(M) 7.5-22.5M
Crane traveling mechanism Traveling speed(m/min) 20 30 45 60 75 20
Reducer ratio 58.78 39.38 26.36 19.37 15.88 58.78
Motor Model ZDY21-4 ZDY21-4 ZDY122-4
Power(kw) 2× 0.8 2× 1.5 1.5× 2
Rotation (m/min) 1380 1380
Lifting mechanism
(electric hoist)& electric hoist traveling mechanism		 Electric hoist model CD1/MD1 MD1/HC
Lifting speed (m/min) 8, 8/0.8 7, 7/0.7 3.5 3.5/0.35
Lifting height (m) 6, 9, 12, 18, 24, 30 12, 18, 24, 30
Traveling speed (m/min) 20(30) 20(30)
Motor Taper Squirrel-cage type Taper Squirrel-cage type
Work duty A3-A5
Power supply 380V 50HZ three phase
Wheel diameter 270mm 370mm
Width of trail 37-70mm 37-70mm

Single Girder Overhead Crane Drawing
