Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
Specifications
Brand Name :
Major
Model Number :
LDA
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Single girder gantry crane; Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Driving :
Electric Motors
Main Electrical Parts :
Siemens
Rated Loading Capacity :
1~32t
Span :
5--35.5m
Control Method :
Cabin, Pendant Control And Remote Control
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Feature :
Single Girder EOT Bridge Overhead Crane
Lifting Height :
No limit
Description

LDA type 5 ton single girder traveling overhead crane price and overhead travelling crane price

Bridge crane is one kind of heavy duty crane ,it is widely used in plants, warehouses, materials stocks to

lift goods or materials. This crane mainly consists of strong bridge beams,crane travelling

mechanism, electric winch trolley and electric system,and could be classified into several working

duties,e.g.A5,A6,A7,according to the working frequency and pure working time.

Product Name Product picture Product introduction

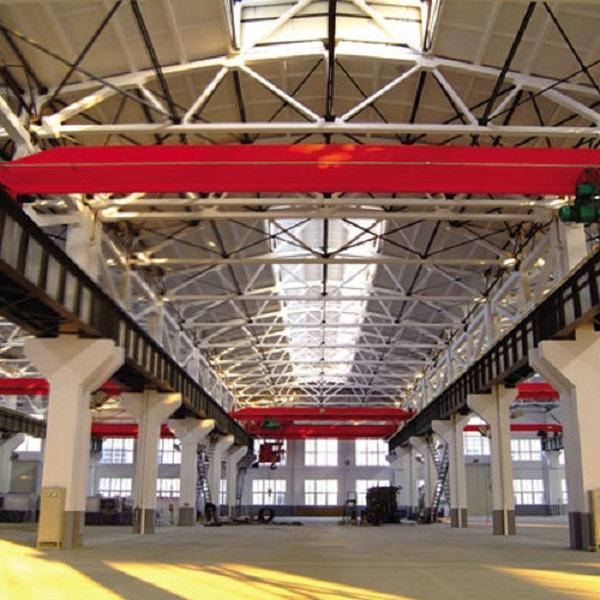

Single girder bridge crane Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton Single girder bridge crane consists of four components: the single girder, end carriage, electric hoist and electric control equipment. The Girder adopts the welding structure of U-shaped groove and structure with the I-steel. This transmission system has strong overloading power, suited to frequent starter with simple structure, convenient installation, use and maintenance, low cost, suitable for general lifting of the goods.

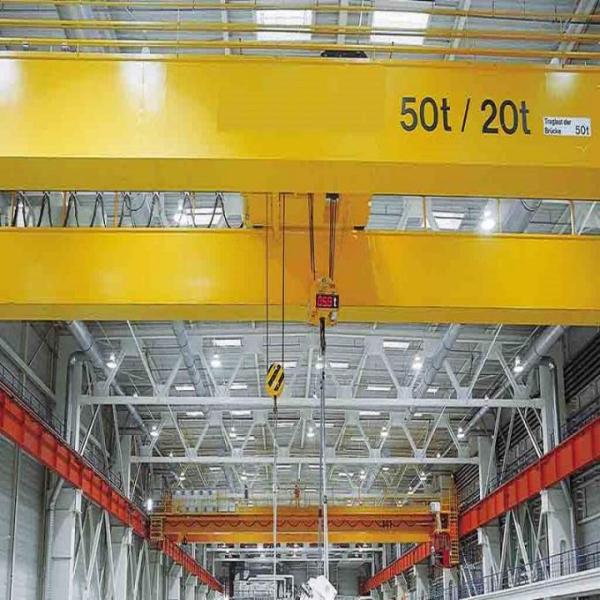

Double girder bridge crane Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton Double-girder bridge crane with hook is the widely used hoisting machinery currently.It is mainly comprised of box-shape bridge,crane crab,trolley travelling mechanism and electric control system.The load handing device is the hook.On the girder for crane crab to transversely move.The girder is weld with the box-shaped end girder.At the middle of the end girder are joints which are fastened with bolts for fragmented transportation of bridges.The platform is used to place trolley travelling mechanism,electric equipment and used for repair.

Main Technical Data
Crane travelling mechanism Traveling speed(m/min) 20 30
Speed ratio 58.95 39.42
Motor Type Cone squirrel-cage
Power(kw) 0.8*2,1.5*2
Rotational speed(r/min) 1380

Lifting mechanism(electric hoist)&electric

hoist travelling mechanism

 Model of electric hoist YHⅡmodel
Lifting speed(m/min) 8,7
Lifting height(m) 9,12,15,18,20
Traveling speed(m/min) 20
motor Cone squirrel-cage model
Working system Intermediate Jc=25%
Electric current 380V 50HZ Three-phase
Wheel diameter 270,400
Width trail 37-70

Advantage of crane main beam/girder

The U shape slot with high precise is made by cold bend forming technology, which avoid polish, cutting and welding etc. such complicated production process, it can reduce the deformation of single beam/girder overhead crane during loading and transportation, thus, it can ensure the precise of main beam/girder, reduce the welding stress and welding fatigue during travelling. Meanwhile, it greatly increases the strength of whole crane, improve working efficiency and appearance quality.

Packaging & Shipping

1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked.

2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton

Processing Facility

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton

Main product showcase

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton

Packaging & shipment

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton

Industrial Electric Traveling Single Girder Overhead Crane 3 Ton / 2 Ton
