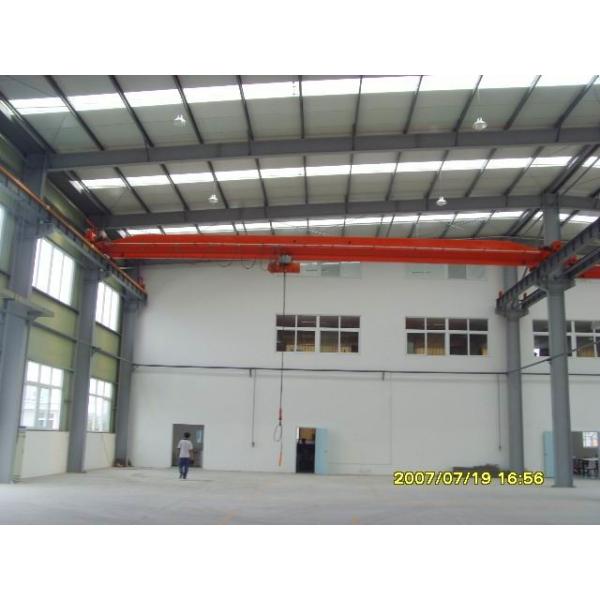

IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
Specifications
Brand Name :
Major
Model Number :
LDA
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
20000 Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Single girder gantry crane; Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth
Material :
Steels Q235, Q345, etc.
Main Electrical Parts :
Siemens
Rated Loading Capacity :
1~20t
Span :
5--36m
Control Method :
Cabin, Pendant Control And Remote Control
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Feature :
Single Girder EOT Bridge Overhead Crane
Lifting Height :
No limit
Description

LDA model electric hoist single beam overhead bridge crane 3 ton 5ton 10ton 15ton 20ton

Product Description


LDA type wheel overhead crane is improved and designed on the basis of LD model.
It is characterized by more reasonable structure and higher strength steel as a whole.
Used together with CD model, MD model or HC electric hoist as a complete set.
This type is light duty crane with following details.

LDA type wheel overhead crane can be divided into three parts as follow:

1. Steel structure includes main beam and end truck
2. Lift equipment, CD/MD or chain hoist.
3. Crane traveling mechanism: Two end carriages with wheels driven by electric motor
Control Mode
1. Cab
Independent festoon station or fixed suspend under crane
Protection class IP65
2. Remote Control
Easy control, no additional driver, remote access.

Spare parts are very important for LDA model single girder overhead crane, to ensure the quality, all the spare parts are tested

scrutinized very intensely. You can tatally trust our product quality.

Lifting capacity (T) 1, 2, 3, 5, 10T 16, 20T
Span(M) 7.5-22.5M
Crane traveling mechanism Traveling speed(m/min) 20 30 45 60 75 20
Reducer ratio 58.78 39.38 26.36 19.37 15.88 58.78
Motor Model ZDY21-4 ZDY21-4 ZDY122-4
Power(kw) 2× 0.8 2× 1.5 1.5× 2
Rotation (m/min) 1380 1380
Lifting mechanism
(electric hoist)& electric hoist traveling mechanism		 Electric hoist model CD1/MD1 MD1/HC
Lifting speed (m/min) 8, 8/0.8 7, 7/0.7 3.5 3.5/0.35
Lifting height (m) 6, 9, 12, 18, 24, 30 12, 18, 24, 30
Traveling speed (m/min) 20(30) 20(30)
Motor Taper Squirrel-cage type Taper Squirrel-cage type
Work duty A3-A5
Power supply 380V 50HZ three phase
Wheel diameter 270mm 370mm
Width of trail 37-70mm 37-70mm

IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance

Single Girder Overhead Crane Drawing

IP65 Single Beam Overhead Crane 1-20t Rated Loading Capacity For Workstation Easy Maintenance
