Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Mobile Rubber Tyred Port Gantry Crane , Continuous Ship Unloader Rail Mounted Crane
Specifications
Brand Name :
Major
Model Number :
MG
Certification :
CE/ISO/GOST/SGS/BV/TUV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
10000Sets Per Year
Delivery Time :
15days - 100days
Packaging Details :
Nude packing or Wooden Packing
Material :
Steels Q235, Q345, etc.
Color :
Yello, Blue, etc. By Buyer's Option
Driving :
Electric Motors
Power :
Electricity
Rated Loading Capacity :
100--30000t
Rate Productive Capacity :
300-1800t/h
Speed Of Belt :
2.5-3.5m/s
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Product Name :
Rail Mounted Gantry Crane
Description

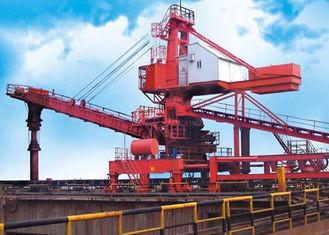

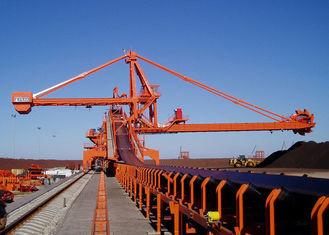

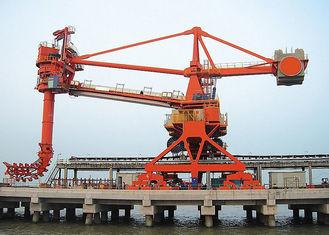

Continuous mobile rubber tyre type , Mobile rail mounted ship unloader

Description

Continuous Ship Loader is new dock ship loader equipment,and entire ship loading system is installed on any traveling gear at any position of dock.


System Introduction:
1. Traveling system: it adopts self-propeled driving system, and driving equipment consists of tire, axle,bearing and hydraulic motor.
2. Belt feeder system: belt feeder consists of transmission drum roll, turnabout drum, and roller, delivery tape, cleaning device, safety protection device, tension device and metal structure frame.
3. Arm support pitching system: arm support pitching system concludes hydraulic system and fixed support frame, and it is working by the use of double hydro-cylinder arm support with arm support pitch at 17 º -32 º angle.
4. Feeding device: feeding device makes material be delivered on belt feeder evenly, and it can be supported with tire mobile feeding device.
5. Charging barrel system: hose trunk swing system consists of hose swing back and front device and swing conponents. Propel equipment consists of hydraulic system, hose trunk and other components.
6. Hydraulic control and hydraulic station: it serves to support entire ship loader to move, and support hydro-cylinder arm support to do pitching motion, and drive hose trunk to swing back and front as well as support traveling system.
7. Electric apparatus: it consists of power supply, belt delivery component, controlling part, illumination, and signaling and safety signal protection. Movabl power station can satisfy power supply for ship loader and supporting feeding equipments..

Technical parameters

parameters MS30 MS100 MS180 unit
rate productive capacity 300 1000 1800 t/h
limit capacity 360 1200 2000 t/h
bulk cargo coke bulk cement coal
ship size 5000 5000 5000 DWT
width of belt conveyor 1000 1400 1400 mm
speed of belt conveyor 2.5 2.42 3.5 m/s
chute extending length 8.15 19.5 19.5 m
chute extending length speed 9.3 4 3.6 m/min
