Specifications
Place of Origin :
China
Brand Name :
Nante
Certification :
ISO9001
MOQ :
1 SET
Packaging Details :
Seaworthy packings in container or bulk vessel
Delivery Time :
30days or according to client's need
Payment Terms :
T/T, L/C
Model Number :
Htr
Colour :
Orange
Conductor Material :
Copper
Transport Package :
Reel/Drum
HS Code :
854449
Model name :
Nante
Price :
N/A
Description

In order to offer our clients with a complete set of competitive lifting solution. We deliver a wide range of products include:

1. Lifting Equipments for Construction: Beam Launcher, Gantry Crane, Segment Lifter, Form Traveler, and Bailey Bridge etc.

2. Lifting Equipments for Industry: Overhead Crane, Gantry Crane, Jib Crane, Light Crane System.

3. Crane Components: Electric Hoist & Trolley, End Carriage, Conductor Rail, Festoon system, Steel Rail, Flat Cable,

Pendent Control, Geared Motor, Remote Control etc.

Installation view

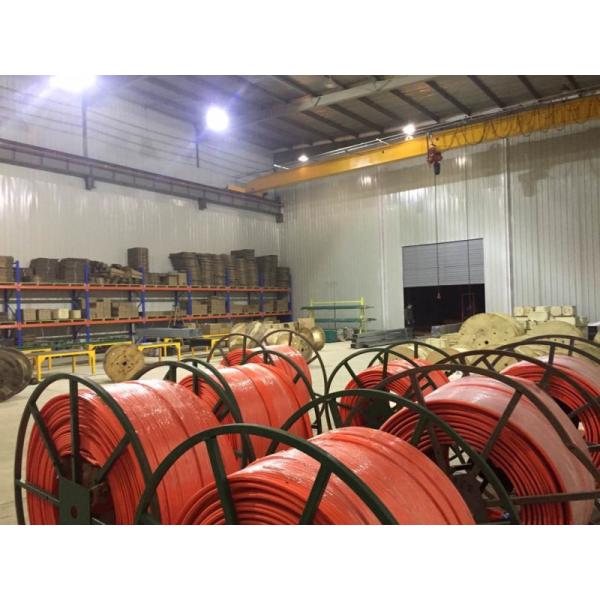

Supply 1000m conductor without any joint

Installation easily and quickly, offer 3P,4P(35A,50A,65A,80A,100A,120A,140A),6P(50A,80A)total three types, with the load matching, selection and utilization economically. Meanwhile 3P,4P can be combined into other types.

Seamless / Multipole High Tro Reel System Crane Components / Conductor Rails

Standard installation

Seamless / Multipole High Tro Reel System Crane Components / Conductor RailsSeamless / Multipole High Tro Reel System Crane Components / Conductor Rails

Technical Data

Poles 3P/4P/6P
Max. current 140A
Max. Voltage 600V
Material Conductor Bar Copper
Insulation PVC(heat resistance: 75℃)
Sparts Plastic/Galvanized Steel

Seamless / Multipole High Tro Reel System Crane Components / Conductor Rails

Type Poles Conductor Cross Section(mm2) Max. Current(A) Weight(kg/m)
HTR-4-10/50A 4 3x10+1x10 50A 0.75
HTR-4-15/80A 4 3x15+1x10 80A 0.90
HTR-4-20/100A 4 3x20+1x10 100A 1.05
HTR-4-25/120A 4 3x25+1x10 120A 1.15
HTR-4-35/140A 4 3x35+1x10 140A 1.43

ABOUT NANTE MACHINERY

After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading

integrated solution provider for crane and crane components in China. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, We can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.
