DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
DCS Truss Double Girder Gantry Crane / large - tonnage / 100t - 10t - 25m - 16m /
Specifications
Place of Origin :
China
Brand Name :
Nante
Model Number :
1SET
Certification :
ISO9001
MOQ :
1 SET
Packaging Details :
Seaworthy packings in container or bulk vessel
Delivery Time :
Within 2 months
Payment Terms :
T/T, L/C
Supply Ability :
5000 Sets per Year
Price :
N/A
capacity :
100t
span :
25m
height :
16m
Description

DCS100t - 10t - 25m - 16m Truss Double Girder Gantry Crane

DCS Truss double beam Electric Gantry Cranes offer an economical solution to overhead cranes when the building is inadequate to support a bridge crane or the crane system is to be located outdoors. Truss Girder Portal Gantry Cranes are a variation from the typical beam or box girder that becomes economical when long crane spans are required. Additionally, many truss girders allow the hoist to be located "up into" truss thereby offering much better hook height than a single beam or box girder crane. Also, truss girder cranes are typically more economical than long span beam or box girder cranes. Truss girder cranes offer almost limitless span - but capacity is often restricted with longer spans. Truss girders are also used on outdoor long span cranes in order to reduce effects of wind on the crane drive system.

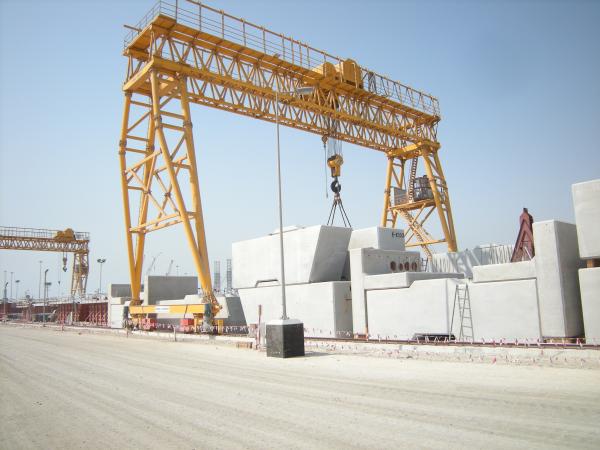

Gantry portal crane for pre cast yard can be applied to both single girder and double girder format. It is ideal for outdoor applications where lifting devices can be applied without the cost of supporting steelwork. Indoor applications are also available where with a low ceiling and overhead cranes are not suitable. Typical occasions of goliath gantry crane include steel stock yards, loading areas, the concrete industry, ship building, and workshops.

Place of Origin: Zhejiang, China
Brand Name: Nante
Model Number: DCS100t-25m-16m
Certification: ISO9001:2008
Max. Lifting Load 100t
Span 25m
Max. Lifting Height 16m
Crane Travelling Speed 6-60m/min
Trolley Travelling Speed 2-30m/min
