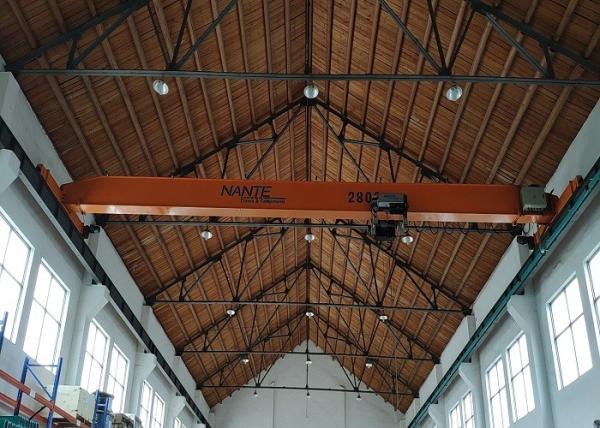

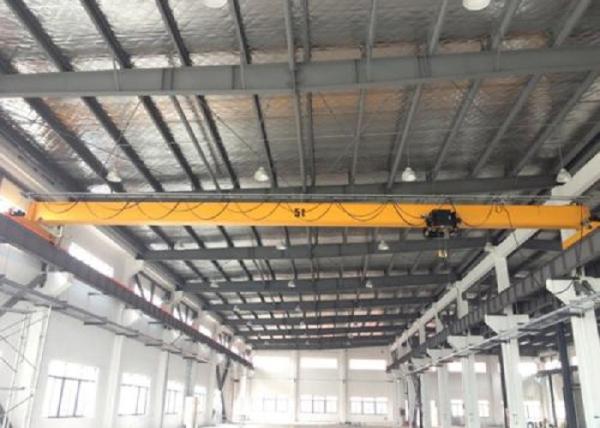

Single girder overhead crane with hoist are widely used in the following applications:

1. LIGHT DUTY Cranes for maintenance, warehouse and assembly operations.

2. MEDIUM DUTY Cranes for general engineering application and Machine shop.

3. HEAVY DUTY Cranes for Heavy machine shops, paper mills, Fabrication shop, etc.

4. EXTRA HEAVY DUTY Cranes for continuous operation in Steel mills and other Heavy Engineering purpose. Cranes for Outdoor duty is also designed specially.

Technical Parameters

Design features include:

DESIGN:

Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct

fits between components

STRUCTURE:

Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections.

If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:

Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast

aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:

We also offer Variable Frequency Drive in hoisting, cross travel,long travel for steples speed control

as an optional feature. We also provide radio remote control cranes for application in inaccessible and

hazardous areas.

Brakes

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Controls

Pendant control from floor, master control switches,master controllers in the driver's cabin can be

provided.Radio remote control can be provided on request.

ELECTRICAL PANEL:

Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non screwed terminals.

PAINTING:

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

LIMIT SWITCHES:

To prevent over hoisting & over lowering of hook.
