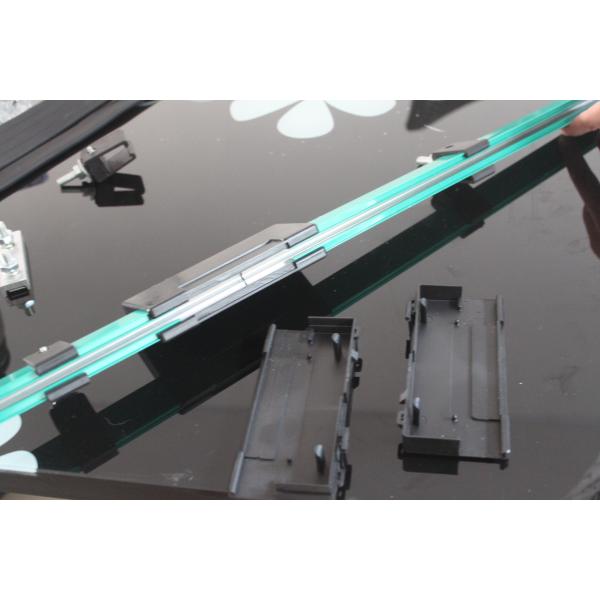

NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
Specifications
Brand Name :
NANTE
Model Number :
NSP
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1 Stripe
Price :
N/A
Payment Terms :
L/C, T/T
Supply Ability :
10, 000/Month
Delivery Time :
Within 30days or according to client's need
Packaging Details :
Seaworthy packings into containers
Brand :
NANTE
Modle :
NSP
Certificate :
ISO9001:2008
Material :
Copper/ Aluminium
Current :
150-1250A
Max. Voltage :
660V
Description

Standard application data
Nominal Current (at 100% duty cycle) [A]: 100
Nom. Voltage [V]: 600
Rail Length [mm]: 6.000 or 4, 000
Outside-Dimensions (Pol) [mm]: 12, 0 X 18, 0
Operating Conditions: For indoor and weather protected outdoor applications
Track Configuration: Straight / easy onside adaptation to course layout

Mechanical properties:
Flexible strength: 75N/mm2± 10%
Tensile strength: 40N/mm2± 10%

Temperature range:
Common Housing: -30oC up to +60oC
BAYBLEND Housing: -20oC up to +115oC

Resistance to chemicals: +45oC
Gasoline: Sulphuric acid 50%
Mineral Oil: Caustic soda 25% & 50%
Grease: Hydro-chloric acid, concentrated.

Special features
Fast mounting with plug and screw connector solution
Compact design for multiple poles on limited space (Phase distance 14 or 12 mm)
Easy mounting and flexible combination with 4, 6, 8 or 10 poles clamp in rail holder
Rail holder for all common EMS rail systems available
Flexible on side rail adaptation (bending device)
Power feed option on each connector or endcapposition possible
Main applications
EMS Eleotro monorail systems
Stretcher / Packing equipment
Amusements rights
Ring application or slip rings
Stage equipment

Technical Data:

Type Conductor material Cross section(mm²) Nominal current (A) Leakage-distance (mm) Resistance Dimensions (H * W) Weight(kg)
H19 Aluminum 100 150 35 or 80 0.376 25*19 0.46
H24 Aluminum 160 250 45 or 80 0.203 32*24 0.63
H24 Aluminum 180 300 45 or 80 0.187 32*24 0.71
H32 Aluminum 230 320 80 0.153 42*32 0.96
H32 Aluminum 285 500 80 0.116 42*32 1.13
H32 Aluminum 360 630 80 0.087 42*32 1.38
H32 Aluminum 450 800 80 0.067 42*32 1.5
H32 Aluminum 550 1000 80 0.058 42*32 1.83
H32 Aluminum 600 1250 80 0.046 42*32 2.01

Products Display:

NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time

NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time

NSP Series Overhead Crane Parts Single Pole Conductor Rail Long Life Time
