Custom Hydraulic Hoist Power Plant Oily Block Hydraulic Tank Hydraulic Station

Product Introduction

The hydraulic station is the power source of the hydraulic transmission. It supplies oil according to the flow direction, pressure and flow required by the drive unit. It is suitable for various machines where the drive unit is separated from the hydraulic station. The hydraulic station and the drive unit (cylinder or oil motor) are used. The oil pipes are connected, and the hydraulic station can realize various prescribed actions.
working principle:
The motor drives the electric pump to provide a pressure source, and adjusts and controls the direction, pressure and flow of the driving device (cylinder or oil motor) through the integrated block and the hydraulic valve to realize various prescribed actions.

Specifications of water sluice gate hoist

1. The ideal equipment of water conservancy project
2. Easy to install and operation

3. Easy to maintenance

4. One year warranty and lifelong time technical service

5. We can provide free training to end-users

Specifications

1. Capacity: 100~900t
2. Groundspecific pressure: 6.5~11.5kg/cm2
3. Grading ability: 2%~4%
4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min
5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min
6.Working ambient temperature: -20 ℃~+50 ℃

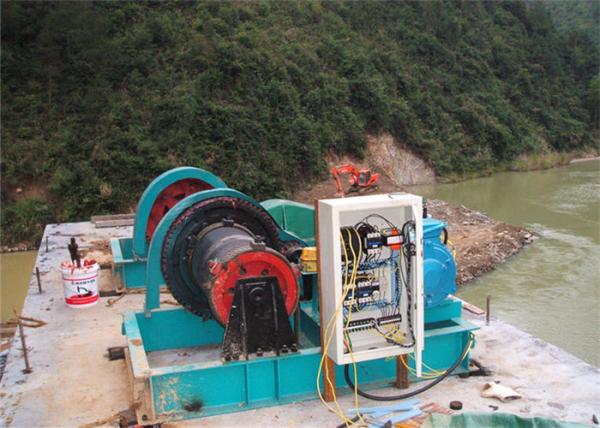

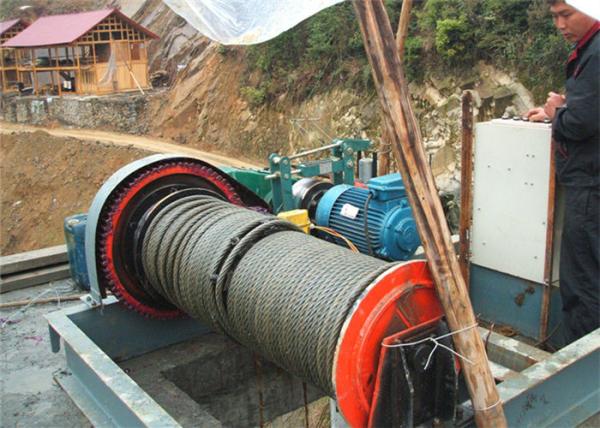

water sluice gate hoist

1. Winch hoist is divided into five types QPQ QPK QPT QPK QPH.

2. The type of Wire rope is 6w(19), nominal tensile strength is 155-170kgf/mm².

3. Winch hoist has single and double lift point styles.

4. Uplifting force: QPQ,QPT: 50KN-2500KN

QPK: 50KN-630KN

QPH: 50KN-1250KN

5. QPK series have two kinds of descent speed: Fast and Slow level.

The Slow level is the speed under normal power condition

The Fast level according to the gate weight without electric power, the speed is no more than 5m/min.

Specifications of water sluice gate hoist

1. The ideal equipment of water conservancy project

2. Easy to install and operation

3. Easy to maintenance

4. One year warranty and lifelong time technical service

5. We can provide free training to end-users

Packing&Delivery

1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.

2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.

3. boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.

Package:

Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

Delivery:
1.If the size of whole crane are suitable for container ship, usually by container.
2.If the size is too big, usually by bulk ship or by container after truncation.
3.Transport ways are based o reducing cost for you and keep the winch performance.

Information collection

1. Please provide sketch of your project if you have ?
2. What is the purpose of your project?
3. Could you please provide the project background and environment data , as shore type , lowest and highest water level, ,wind velocity , water variation ,wave height. ?
4. Which kind of water bottom type ?
Sand, Pebbles, Mud, Rocks
5. Do you have the problem like ice formation during winter?
6. Are you in a tidal area? And what is the tidal range?

Our Services

1.We will respond to your inquiry as soon as possible and e-mail

2.All thesluice gate screw hoist is 1 year guarantee .If our machine have quality problem in you country because of our real mistake,our company accept the replacement any time.

3.I will send you instructions and vedio of machine to help easy to operate.

FAQ

Q: Are you a trading company or a manufacturer?
A: We are factories. Hydraulic cylinder accessories single and double acting telescopic hydraulic cylinder

Q: How long is your delivery time?
A: The normal delivery time is 20 working days, but according to your product requirements and quantity. multi stage hydraulic cylinder elevation cylindermining hydraulic cylinders

Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples, but we need to pay

Q: What is your payment terms?
A: The contract amount is <=1000$, and 100% must be paid in advance. The contract amount >=1000$, 30% T/T in advance, and the remaining balance before delivery. If you have any questions, please feel free to contact us.
