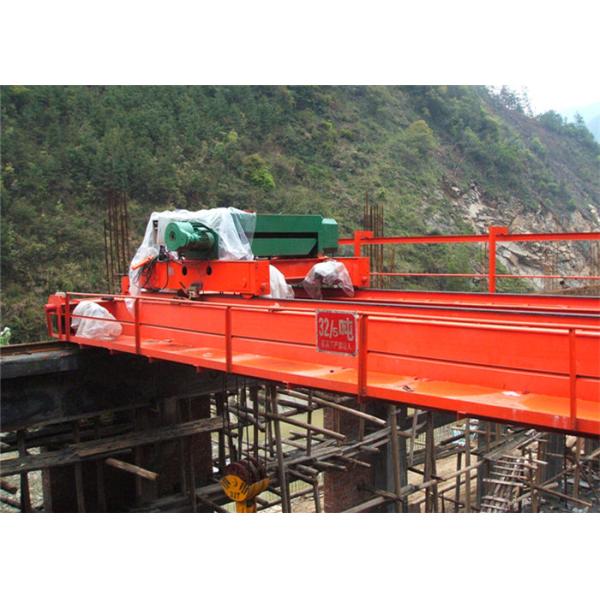

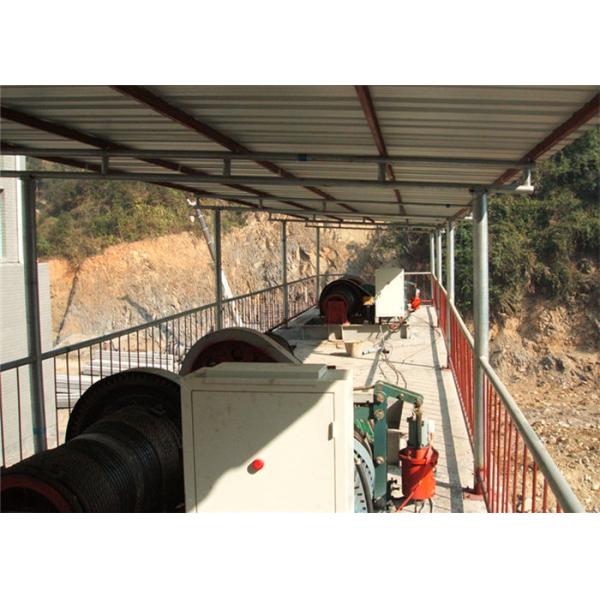

Heavy Duty Electric Winch for Construction and Water Conservancy

Product Introduction

As a machine that can afford the large strength, its speed is relatively lower than the light duty winches. On the one hand, it is necessary for the safety in the process of working. The large scale things in high speed will cause accidental matters because it is hard to stop in a short time. On the other hand, it is unnecessary to the machine owing pretty high speed. The moving of large scale machine is suitable for a relatively slow speed.

Specifications of water sluice gate hoist

1. The ideal equipment of water conservancy project
2. Easy to install and operation

3. Easy to maintenance

4. One year warranty and lifelong time technical service

5. We can provide free training to end-users

Specifications

1. Capacity: 100~900t
2. Groundspecific pressure: 6.5~11.5kg/cm2
3. Grading ability: 2%~4%
4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min
5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min
6.Working ambient temperature: -20 ℃~+50 ℃

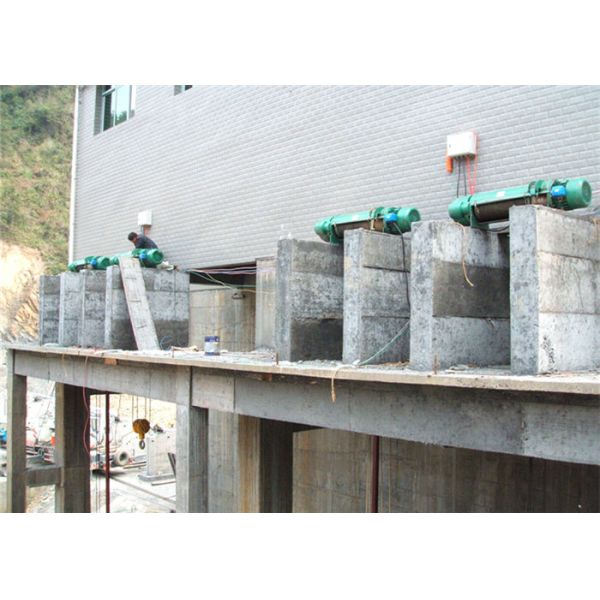

water sluice gate hoist

1. Winch hoist is divided into five types QPQ QPK QPT QPK QPH.

2. The type of Wire rope is 6w(19), nominal tensile strength is 155-170kgf/mm².

3. Winch hoist has single and double lift point styles.

4. Uplifting force: QPQ,QPT: 50KN-2500KN

QPK: 50KN-630KN

QPH: 50KN-1250KN

5. QPK series have two kinds of descent speed: Fast and Slow level.

The Slow level is the speed under normal power condition

The Fast level according to the gate weight without electric power, the speed is no more than 5m/min.

Specifications of water sluice gate hoist

1. The ideal equipment of water conservancy project

2. Easy to install and operation

3. Easy to maintenance

4. One year warranty and lifelong time technical service

5. We can provide free training to end-users

Packing&Delivery

1. Use the wooden box made of inspection free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.

2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.

3. boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reasonable, the reinforcement belt is not less than 2, to meet the requirements of the export.

Package:

Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

Delivery:
1.If the size of whole crane are suitable for container ship, usually by container.
2.If the size is too big, usually by bulk ship or by container after truncation.
3.Transport ways are based o reducing cost for you and keep the winch performance.

Information collection

1. Please provide sketch of your project if you have ?
2. What is the purpose of your project?
3. Could you please provide the project background and environment data , as shore type , lowest and highest water level, ,wind velocity , water variation ,wave height. ?
4. Which kind of water bottom type ?
Sand, Pebbles, Mud, Rocks
5. Do you have the problem like ice formation during winter?
6. Are you in a tidal area? And what is the tidal range?

Our Services

1.We will respond to your inquiry as soon as possible and e-mail

2.All thesluice gate screw hoist is 1 year guarantee .If our machine have quality problem in you country because of our real mistake,our company accept the replacement any time.

3.I will send you instructions and vedio of machine to help easy to operate.

Pre-sale Service

1. Provide technical information.
2. Proffessional team to help you select our products.
3. Provide accurate parameters.
4. Welcome to visit our factory.
5. Always online.

After sales service

1. On-site experienced engineers and
2. Maintenance and replacement
3. Quality complaints, within 1 hours
4. Ontime delivery
5. 1 year warranty
