High Quality Free Standing Pillar Column Mounted Slewing Jib Crane for Your Needs

Product Description

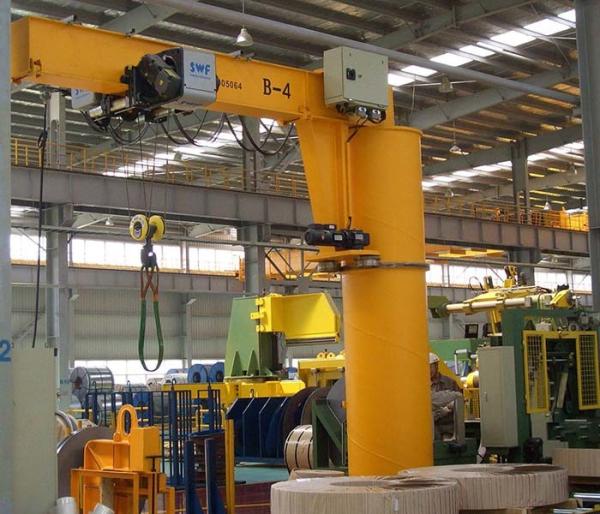

The working strength of the cantilever crane is light. The crane is composed of a column, a slewing arm slewing driving device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts.Crane slewing arm is hollow steel structure, light weight, long span, heavy lifting weight, economic and durable.Built-in walking mechanism, using special engineering plastic walking wheel with rolling bearing, low friction and brisk walking;The small size of the structure is especially helpful to improve the trip of the hook.

Safe operation

It is not allowed to use jib crane to transport personnel.
It is not allowed to lift the load above the personnel.
It is not allowed to pull or drag the load. Overload is not allowed. Avoid collision of lifting hook with limit switch during normal operation.
The load spreader must be hung on the trolley by flexible connection.Rigid connection will produce uncontrollable force, which will eventually lead to fatigue fracture.
It is not allowed to pull the manual switch when loading. When the rotating arm rotates manually, it can only pull the hook, and it is not allowed to pull the manual switch and cable. The fasteners on the jib crane shall be checked and tightened once every 6 months.

Jib Crane Application

Wall Mounted Jib Crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.

Wall Mounted Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production. And Wall Mounted Jib Crane adopts West Germany technology , has the features of reasonable structure, easy operating and high efficiency, etc . It is widely used in Wareshop,Workshop,Plant,port,Open Yard,Storage Area and etc.for example,Used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo.

Safety Features of Wall Mounted Jib Crane:

Crane traveling limit switch.
Weight overload protection device.
Lifting height limit device.
Voltage lower protection function.
Phase sequence protection function.
Emergency stop function.
Rain cover for outside hoist, driving units, electric cubicle.
Warning indicator: flashing lights and warning sounds.
Wireless infra-detector for anti-collusion.

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature?

7. Would be better if you have drawings of your plant.

Packaging & Shipping

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2. Do you have any MOQ limit ?
A: Low MOQ, 1 set for sample checking is available

Q3: Do you provide samples ? Is it free or extra ?
A: Yes, we could supply the sample but you have to pay the sample cost and the courier cost.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
