Travelling Lifting Overhead Crane Machine Girder Bridge Crane with Electric Hoist

product description

Double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.

Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.

There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Features:

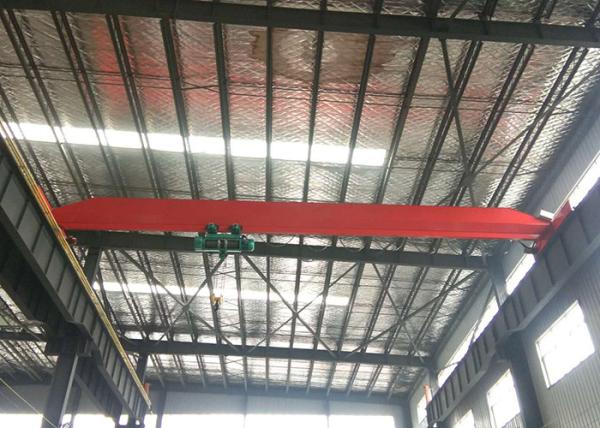

1. Combined with CD1 and MD1 electric hoist, the crane is a light and small lifting machine.
2. Widely used in different occasions and prohibited to use in flammable, explosive and corrosive medium.
3. Two operating forms as ground and control room; two kinds of operation rooms as open and closed. There are two forms of installation on the left or right side according to actual situation. Also two kinds of entry points, including side and section, to meet different needs.
4. Designed according to standards of JB / T1306 - 1994 manufacturing, supporting CD1, MD1 and other forms of electric hoist.
5. It is a small light rail crane with application weight from 1 ton to 20 tons. It also has advantages like short order cycle and economical economy. But it is not apply to heavy workshops for effective lifting height is relatively low and large sloshing during using.

Advantages:

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Electric hoist:

1. With optimizing design and low headroom, the crane height is greatly reduced, to achieve higher lifting height under the same plant height.
2. With optimizing design and low wheel pressure, the crane height is greatly reduced, to achieve greater lifting capacity under the same strength of the workshop.
3. Crane beams made of computer-optimised box sections.
4. Wheel group with adjustable structure.
5. For reducing the equipment noise,crane is controlled by Three-In-One mechanism with frequency conversion.
6. Overload limiter, height limiter, Stroke limiter, photoelectric limiter and other security measures are equipped according to different working conditions, cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
7. Lifting capacity: 1~32 t, we can product the non-standard customized crane.

Main Products

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

FAQ

1.What is an overhead crane inspection?
OSHA Periodic (Annual) Overhead Crane & Hoist Inspection. The Periodic (Annual) Overhead Crane and Hoist Inspection is a detailed visual and operational inspection. Individual components are examined to determine their condition. The Periodic Inspection is performed Annually, Semi-Annually and perhaps even Quarterly based on severity of service.

2.Why do you need an overhead crane?

Moving bulky loads on floors or through aisles requires a lot of time and can result in injuries. However, overhead cranes play a key role in this because they easily allow warehouse owners in lifting, lowering and moving loads horizontally.

3.What is the role of the grab bridge bucket crane?

Usually, the grab bucket crane is located at the top of the garbage storing pit and is mainly used for the operation of feeding, conveying, mixing, fetching, and weighing of garbage. The garbage grab crane manufactured by the crane factory can implement lifting and convey strictly to ensure normal work of garbage cremation power point.
