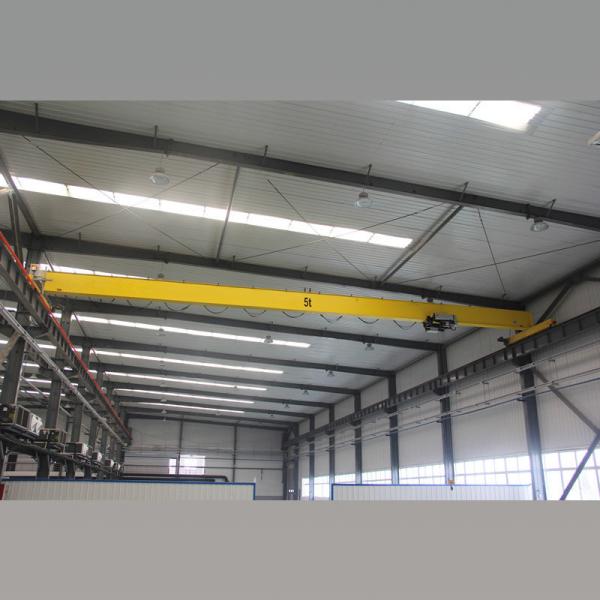

Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder
Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder
Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder
Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder
Specifications
Brand Name :
SGY
Model Number :
LDC
Certification :
CE ISO GOST, SGS, TUV
Place of Origin :
China
MOQ :
1 Set
Price :
USD4000.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 20days after deposit received.
Packaging Details :
Packing of overhead crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
product name :
low headroom overhead crane
keywords :
overhead crane single girder
Span :
7.5-31.5m
Lifting mechanism :
Eliectric Hoist
Feature :
Low Headroom Bridge Crane
Color :
Clients' Requirments
Application :
workshop,plants,factory,warehouse and so on
Control method :
Wireless Remote Control,Pendent line
Description

Low Headroom Type Over Head Cranes 5 Ton LDC Type Single Girder

Low Headroom Type Over Head Cranes Introduction

LDC single-girder bridge cranes are suitable for occasions where the factory building is limited and the lifting height of ordinary cranes cannot meet the needs of customers. Used together with low headroom hoists, it is suitable for places where the height from the track surface of the factory building and warehouse to the bottom chord of the roof truss does not exceed 500mm.

Low Headroom Type Over Head Cranes Technical Parameter

Capacity

ton

3

5

10

20

Operational method

Pendant line with press button /remote control



Speed

Hoisting

8. 8/0.8

7. 7/0.7

3.5, 3.5/0.35

6. 6/0.6

Travelling of crab

20

Travelling of crane

20(30)

20

Electric hoist

Type

CD1-3 MD1-3

CD1-5 MD1-5

CD1-10 MD1-10

CD1-16 MD1-16

Lifting height

M

6,9,12

6,9,12,18

9,12

9,12

Working class

A3~A5

Power supply

3-phrase 50HZ 380V

Low Headroom Type Over Head Cranes Advantage

(1) The main body of the gourd has no leakage cables, and all cables are arranged inside the gourd through various means to make the gourd appearance more beautiful;


(2) The hoist has a compact structure and the counterweight is a counterweight box type. Users can add a variety of scrap steel or stones, etc., which saves steel and at the same time reduces the overall size of the counterweight-type low headroom electric hoist;


(3) The hoist is driven by the NF series helical gear reducer.


(4) The outer cover of the hoisting main unit is a square welded structure, with mounting bolt holes on all sides, which has high versatility. It can be quickly changed to a fixed or suspended trolley-operated electric hoist, and the rope can be pulled out in a 360°direction.

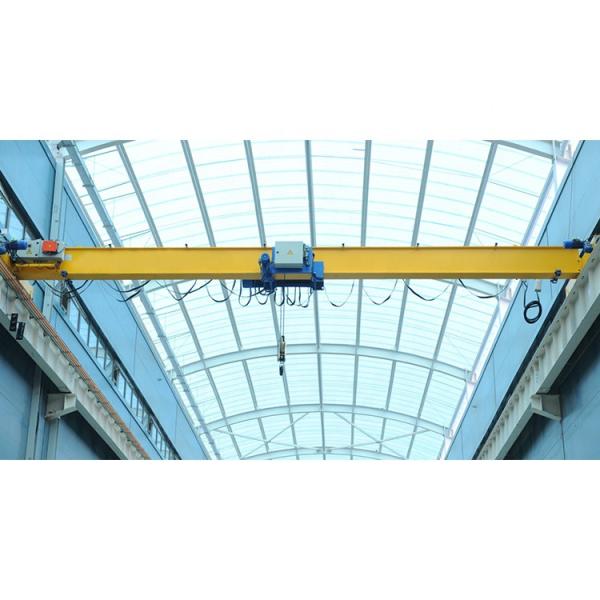

Low Headroom Type Over Head Cranes Detailed Images

Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder

Eliectric Hoist Low Headroom Overhead Crane 5ton LDC Type Single Girder
