7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
Specifications
Brand Name :
SGY
Model Number :
LX
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 Set
Price :
USD4000.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 20days after deposit received.
Packaging Details :
Packing of overhead crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
name :
single girder overhead cranes
keywords :
single girder overhead travelling crane
Condition :
New
Warranty :
12 Months
Span :
7.5-31.5m
Feature :
Suspension Bridge Crane
Max. lifting load :
10 ton
Color :
Clients' Requirments
Control method :
Wireless Remote Control,Ground control,Pendent line
Application :
workshop,plants,factory,warehouse and so on
Description

7.5 - 31.5m Span Single Girder Overhead Cranes Wireless Remote Controlled

Single Girder Overhead Crane Description

The single-girder bridge crane is a lifting device installed horizontally above the factory building, warehouse, and stockyard for material hoisting. It is shaped like a bridge since its ends rest on tall concrete columns or metal supports.

The bridge frame of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated sides on both sides. It can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of lifting machinery.

Single Girder Overhead Crane Technical parameter

The general details of single beam suspension overhead crane

Capacity

0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton

Span(rail to rail center)

3m~16m

Lifting height

6m, 9m, 12m, 18m, 24m, 30m

Lifting speed(m/min)

8(or 8/0.8), 7(or 7/0.7)

Cross travelling speed(m/min)

10, 20, 30

Long travelling speed(m/min)

10, 20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton or remote control

Single Girder Overhead Crane Features

1. The structure: hoist, single girder, end girders, electric control system, low height, small size, light weight, small pressing wheels;
2. The operation mode: cable operation, wireless remote control;
3. Advanced design concept the crane with outstanding distribution and performance, also at the maximum level of narrowing the lifting hook the operating limit of interval, effectively improves the space utilization, also make the customer may reduce the plant investment costs.
4. High performance braking system with anti-dust device can be automatically adjusted, safe service life more than 1000000 times.

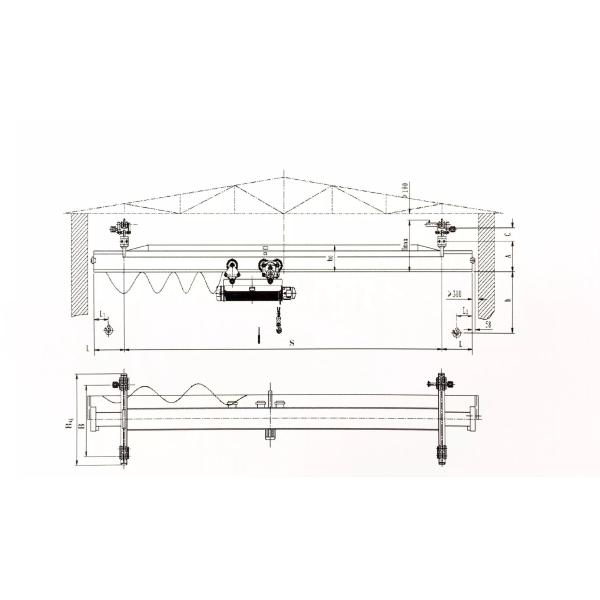

Single Girder Overhead Crane Image

7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane

7.5 - 31.5m Span Single Girder Eot Crane Wireless 10ton Suspension Bridge Crane
