Specifications
Brand Name :
SGY
Model Number :
QYJZ
Certification :
CE ISO GOST SGS
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 sets per year
Delivery Time :
30 work days
Packaging Details :
Export standard packaging
Product name :
Self-Propelled Electric Hydraulic Scissors Lift Platform
Working height :
7~16m
Lifting capacity :
320kg
Platform size :
2.26*1.13*1.1
Its weight :
2450kg
Lifting motor :
3kw
Painting :
Blue or Customised
Warranty :
1 year
Machinery test report :
Provided
Video outgoing-inspection :
Provided
Description

EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform


Self Propelled Industrial Lifting Equipment Brief Introduction

The self-propelled scissor lift makes many difficult and dangerous tasks easier, such as: indoor and outdoor cleaning (ceiling, curtain wall, glass windows, eaves, canopy, chimney, etc.), installation and maintenance of billboards, street lights and traffic signs and maintenance. The characteristics of this high-altitude lifting platform are small and flexible, convenient and fast. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, you can also save your costs and precious time.

Self Propelled Industrial Lifting Equipment Specification

Model GTJZ-6 GTJZ-8 GTJZ-10 GTJZ-12
Maximum Working Height 6m 8m 10m 12m
Maximum Platform Height 8m 10m 12m 14m
Safe Workload 320kg 320kg 320kg 320kg
Working Platform Size
(Length x Width x Height)
2.26*1.13 2.26*1.13 2.26*1.13 2.26*1.13
Overall Dimensions
(Length × Width × Height)
2.47*1.17*2.29 2.47*1.17*2.31 2.47*1.17*2.43 2.47*1.17*2.55
Work Platform Extension Size 0.9m 0.9m 0.9m 0.9m
Minimum Ground Clearance 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m
Wheelbase 1.89m 1.89m 1.89m 1.89m
Driving/ Lifting Motor 24V/3KW 24V/3KW 24V/3KW 24V/3KW
Lifting Speed 3-5m/min 3-5m/min 3-5m/min 3-5m/min

Machine Travel Speed
(Collapsed State)

3.2km/h 3.2km/h 3.2km/h 3.2km/h

Machine Travel Speed
(Lifting State)

0.8km/h 0.8km/h 0.8km/h 0.8km/h
Battery 4*6V/300ah 4*6V/300ah 4*6V/300ah 4*6V/230ah
Charger 24V/20-30A 24V/20-30A 24V/20-30A 24V/20-30A
Gradeability 25% 25% 25% 25%
Maximum Allowable Working Angle 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Total Weight 1350kg 1580kg 2300kg 2450kg

Self Propelled Industrial Lifting Equipment Advantages and features


1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.
4.Maximum payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.


Self Propelled Industrial Lifting Equipment Main Features

1. Safety certification
Comply with European Union EN280 standard and obtain CE certification.

2. Self propelled
The self-propelled scissor lift has the function of automatic move, can move fast and slow under different moving conditions, only one person is required to operate the machine to complete the lifting, forwarding, backward, turning and other actions during the work at height. Compared with the traditional hydraulic platform, the work efficiency is greatly improved, and the number of operators and labor intensity are reduced. It is especially suitable for large-scale continuous high-altitude operations such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, and factory workshops.

3. Stepless speed change
Only one person is required to operate, all movements are controlled by the operating handle on the worktable, and the motor is continuously variable. The service life of the battery and the motor is effectively extended, and the motor only consumes energy during operation.

4. Extension platform
The working platform can be removed, expanding the scope of work, and can meet the special needs of some users

5. Green and environmental protection
Because the machine uses DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.

6. Safety devices
Weight overload protection device; Top quality long time bearing polyurethane materials buffer; Lifting limit switch and traveling limit switch; Emergency stop system; Zero voltage protection; Phases protection device; High temperature resistance device (contact with us for more details.)teel Coil.

7. Customized
Design and manufacture according to your request.

8. Package
By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.

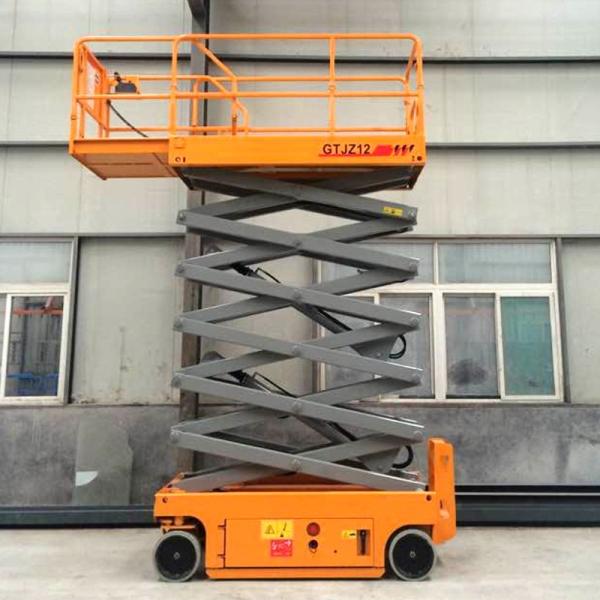

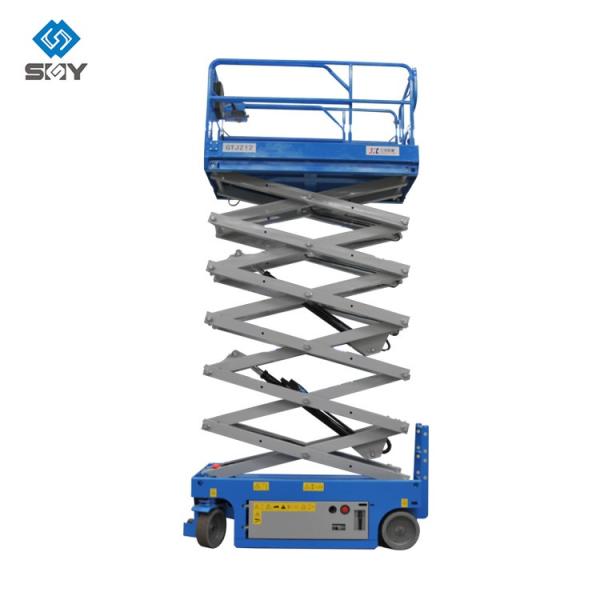

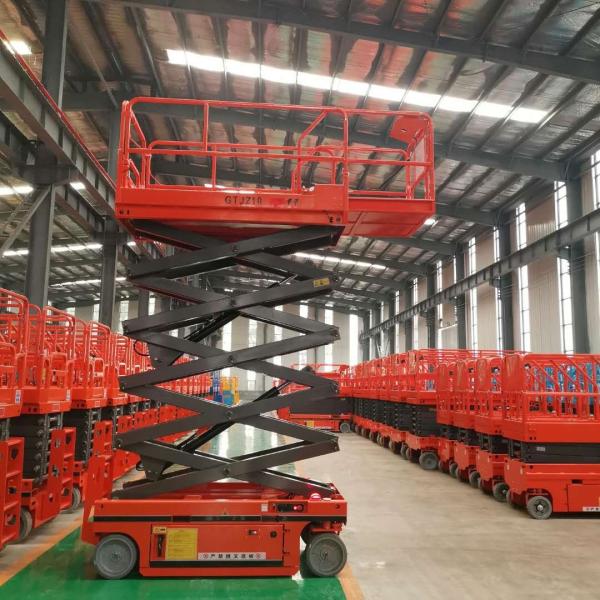

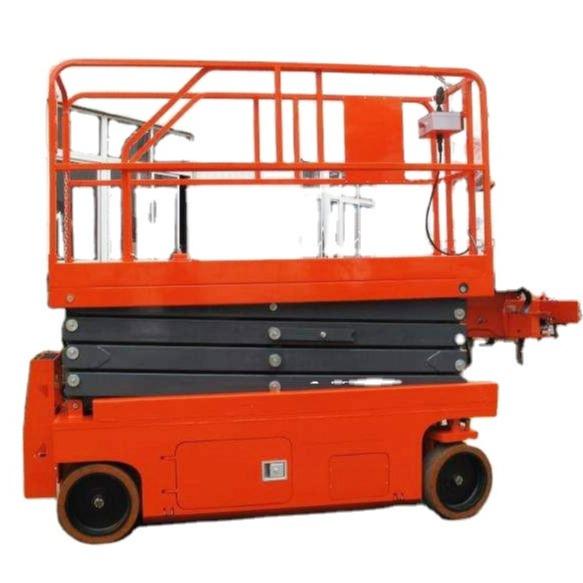

Self Propelled Industrial Lifting Equipment Details
EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform
EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform
