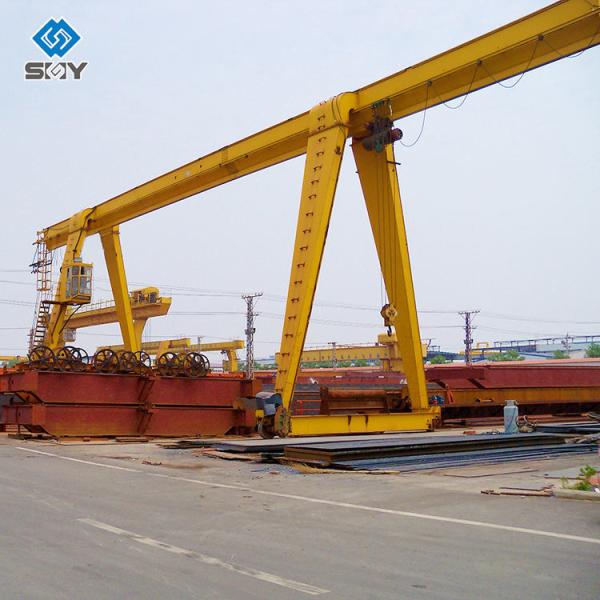

CE ISO CD1 MD1 With Hoist 20 Ton Gantry Crane Single Girder Light Duty Gantry Crane
CE ISO CD1 MD1 With Hoist 20 Ton Gantry Crane Single Girder Light Duty Gantry Crane
Specifications
Brand Name :
YT
Model Number :
MH
Certification :
CE ISO
Place of Origin :
Xinxiang,Henan Province,China
MOQ :
1set
Price :
USD10000-30000 per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sets per year
Delivery Time :
30-60work days
Packaging Details :
The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.
name :
CE ISO Single Girder Gantry Crane
Type :
MH gantry crane with hoist
Lifting Weight :
3~20t
Lifting Height :
6m 9m 12m 18m 24m 30m
Span :
12~30m
Working Class :
A3
Lifting Speed :
0.8-8m/min
The Crane Weight :
6646~40553kg
Travelling Speed :
20m/min
Electric hoist :
CD1 MD1
Description

5t~20t Light Duty Q345 Steel Single Girder Gantry Crane Customized

Single Girder Gantry Crane Description

Single girder gantry crane is a medium and light-duty crane with rail travel. It is used together with CD, MD, and HC electric hoists. It is divided into MH type and MHLP type gantry crane according to the shape. MH single-girder gantry cranes have box type and truss type. The former has good technology and is easy to manufacture, while the latter has light weight and strong wind resistance. According to different purposes, MH gantry cranes also have cantilever and non-cantilever gantry cranes.

Single Girder Gantry Crane Technical Details

Capacity

T

3

5

10

16

20

Span

m

12,16,20,24,30

Operational method

Pendent Line With Press Button /Cabin/ Remote

Speed

Lifting

m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5

3.5

Cross traveling

20

20

20

20

20

Long traveling

Ground

20

20

20

20

20

Cabin

20, 30,45

20, 30,40

30,40

30,40

30,40

Motor

Lifting

Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13

ZD152-4/18

Cross traveling

ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.82

ZDY121-4/0.82

YZD-4/0.84

Long traveling

Ground

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52

Cabin

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112

Electric hoist

Model

CD1/MD1

CD1/MD1

CD1/MD1

CD1

HC

Lifting height

m

6,9,12,18,24,30

Working duty

A3

Power supply

380V 60HZ 3phase AC (According to your demand )

Gantry Crane Features

1. Heavy duty and high efficiency;
2. Applicable to any environment (high temperature, explosion-proof, etc.);
3. Long service life: 30-50 years;
4. Easy to install and maintain.
5. The structure is reasonable and the rigidity is strong;
6. The speed can be controlled by frequency conversion;
7. Control mode is cabin control or remote control;
8. According to the different lifting goods, the crane can be equipped with lifting beam magnet or magnet sucker or grab or C hook;
9. The crane is equipped with standard safety devices such as all moving limit switches and loading limits to ensure the crane's working safety.

Single Girder Gantry Crane Sketch

CE ISO CD1 MD1 With Hoist 20 Ton Gantry Crane Single Girder Light Duty Gantry Crane
CE ISO CD1 MD1 With Hoist 20 Ton Gantry Crane Single Girder Light Duty Gantry Crane
