Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton
Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton
Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton
Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton
Specifications
Brand Name :
SGY
Model Number :
MH
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 sets per year
Delivery Time :
30 work days
Packaging Details :
Export standard packaging
name :
Trussed Type Single Girder Small Gantry Crane
keywords :
Cantilever Gantry Crane
Max.lifting weight :
5~20ton
Max.lifting height :
6m 9m
Span :
12~30m
Working class :
A3
Material :
Q235B
Control method :
Remote Control,Ground control or cabin control
Power source :
3 Phase 380V 50hz,User Requirments
Application :
workshop,Warehouse,Outdoor,Widely,factory
Description

10 Ton Trussed Type Single Girder Small Gantry Crane , Cantilever Gantry Crane

MH Type Single Girder Gantry Crane Brief Introduction

MH single-girder gantry cranes have box type and truss type. The former has good technology and is easy to manufacture, while the latter has light weight and strong wind resistance. According to different purposes, MH gantry cranes also have cantilever and non-cantilever gantry cranes. If there is a boom, the crane can load the goods to the edge of the crane through the outriggers, which is very convenient and efficient.

Lattice single-girder gantry cranes are the best light-duty cranes for windy areas and inside and outside the plant. It is composed of metal structure, cart running mechanism, electric device and trolley (electric hoist). Due to the use of steel pipe outriggers, the windward side is very small, and has the characteristics of light weight and strong lifting capacity. It has ground control and remote control functions. Its proper lifting capacity is 5 to 20 tons. The suitable span is 12-30 meters, the suitable working temperature is -20℃-40℃, and the wind pressure is lower than 125Pa.

MH Type Single Girder Gantry Crane Parameter

Capacity t 3 5 10 16 20
Span m 12,16,20,24,30
Operational Method Pendent Line With Press Button /Cabin/ Remote

Speed

 Lifting m/min 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross Traveling m/min 20 20 20 20 20

Long

Traveling

 Ground m/min 20 20 20 20 20
Cabin m/min 20, 30,45 20, 30,40 30,40 30,40 30,40

Motor

 Lifting Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

ZD141-4/7.5

ZDS10.8/4.5

ZD151-4/13

ZDS11.5/4.5

 ZD151-4/13 ZD152-4/18
Cross Traveling Model ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.82 ZDY121-4/0.82 YZD-4/0.84

Long

Traveling

 Ground Model

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

 YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52
Cabin Model

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112
Electric Hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting Height m 6,9,12,18,24,30
Working Duty Model A3
Power Supply Model 380V 60HZ 3phase AC (According to your demand )

MH model gantry Crane Advantages

1. The structure is simple and compact, and the performance is stable.

2. It is easy to install and has high efficiency.

3. Overload, low voltage protection device.

4. Hanging control and remote control.

5. It is easy to maintain.

If you want to order this gantry crane, Pls tell me the details as follows

1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
4. The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)

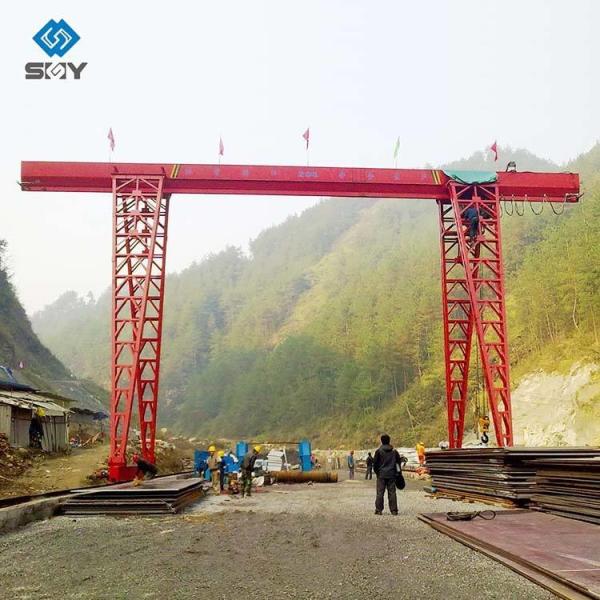

MH Type Single Girder Gantry Crane Images

Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton

Customizable Trussed Type Single Girder Cantilever Gantry Crane 10 Ton
