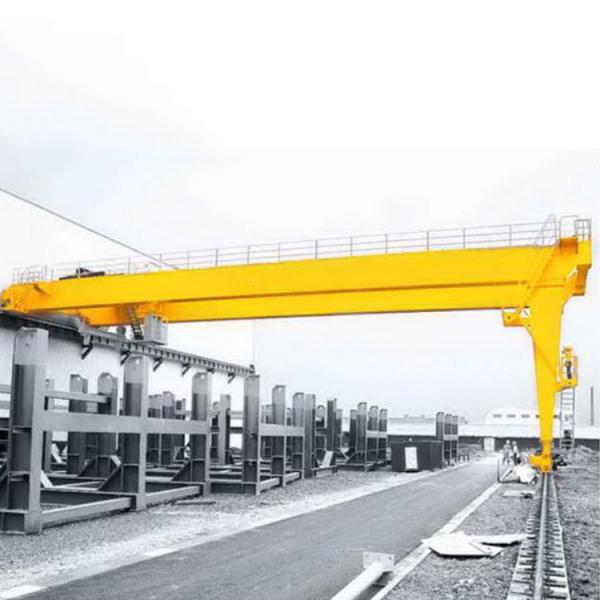

High Rigidity Single Beam 5 Ton Gantry Crane Semi Goliath Crane 18~35m Span
High Rigidity Single Beam 5 Ton Gantry Crane Semi Goliath Crane 18~35m Span
High Rigidity Single Beam 5 Ton Gantry Crane Semi Goliath Crane 18~35m Span
High Rigidity Single Beam 5 Ton Gantry Crane Semi Goliath Crane 18~35m Span
Specifications
Brand Name :
YT
Model Number :
MH
Certification :
CE ISO
Place of Origin :
Xinxiang,Henan Province,China
MOQ :
1set
Price :
USD10000-30000 per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sets per year
Delivery Time :
30-60work days
Packaging Details :
The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.
name :
Semi Electric Gantry Crane
keywords :
MH gantry crane
Lifting Weight :
5~32t
Lifting Height :
6~9m
Span :
18~35m
Working Class :
A3~A4
Lifting Speed :
0.8-8m/min
The Crane Weight :
6646~40553kg
Travelling Speed :
20m/min
Power Supply :
3 Phase 380V 50hz
Description

Single Beam 5 Ton Electric Gantry Crane Semi Goliath Crane

Semi Electric Gantry Crane Description

MH type electric hoist single-girder gantry is a small and medium-sized lifting equipment that includes a main beam, under which there are outriggers and a trolley running mechanism, and is used in conjunction with CD/MD electric hoists. MH gantry cranes are also available for both jib and non-luffing gantry cranes. If there is a boom, the crane can load the goods to the edge of the crane through the outriggers, which is very convenient and efficient. This product is a general-purpose crane, which is mostly used for loading and unloading and grabbing materials in open spaces and warehouses.

Semi Electric Gantry Crane Technical Details

Capacity

T

3

5

10

16

20

Span

m

12,16,20,24,30

Operational method

Pendent Line With Press Button /Cabin/ Remote

Speed

Lifting

m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5

3.5

Cross traveling

20

20

20

20

20

Long traveling

Ground

20

20

20

20

20

Cabin

20, 30,45

20, 30,40

30,40

30,40

30,40

Motor

Lifting

Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13

ZD152-4/18

Cross traveling

ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.82

ZDY121-4/0.82

YZD-4/0.84

Long traveling

Ground

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52

Cabin

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112

Electric hoist

Model

CD1/MD1

CD1/MD1

CD1/MD1

CD1

HC

Lifting height

m

6,9,12,18,24,30

Working duty

A3

Power supply

380V 60HZ 3phase AC (According to your demand )

Semi Electric Gantry Crane Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Technical Characteristics of Semi Electric Gantry Crane

Three-in-one transmission system, electric non-contact module speed regulation, can realize micro-speed and double-speed close to frequency conversion function, making operation, lifting and electric movement particularly stable. Equipped with overload alarm, deflection crane, secondary protection for hooks, overcurrent protection for missing parts, etc. The operating console (handle) adopts 12V safety voltage to realize multi-functional protection of gantry cranes. The voltage is in the range of 380V+5~-10%, and the electric control can be used for a long time of 2 million times.

Semi Electric Gantry Crane Crane Sketch

High Rigidity Single Beam 5 Ton Gantry Crane Semi Goliath Crane 18~35m Span
