18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity
18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity
18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity
18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity
Specifications
Brand Name :
SGY
Model Number :
L
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD5200.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packing of Single girder crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Product Name :
L Type Single Girder Gantry Crane (Hoist Type) CE certification
Material :
Q235B
Lifting Mechanism :
Electric hoist
Control Method :
Press button,remote control,cabin
Working duty :
A3
Rated Loading Capacity :
20t
Max. lifting height :
15m
Span :
18m-35m
Feature :
Gantry Crane
Crane feature :
safety,steel box type
Description

L Type Single Girder Travelling Gantry Crane With Electric Hoist 50 / 10 Ton Capacity

L Type Single Girder Gantry Crane Description

The L-type gantry crane is composed of beam frame, outriggers, crane traveling device and electric hoist. This model crane is specially designed with only 2 outriggers on one side, which makes work more efficient and can transfer long materials through the outriggers to the outrigger beam. Cranes are used more extensively at customer job sites.

The L-type gantry crane is designed and manufactured according to the national standard. This crane model is available in a variety of designs and configurations to ensure you get the perfect waste handling system.

L Type Single Girder Gantry Crane Technical parameter

Capacity t 10 16 20/10 30/10 36/16 50/10
Span m 18-35 18-30 18-35 22-26 26-30 32
Duty medium medium medium medium Heavy Heavy/medium
lifting height main m 11.5 12.5 10.5 11.5 11.5 12
aux. / / 11 12 12 13
speed hoist main m/min 18.4 12.3 9.2 10.4 10.4 6
aux. / / 18.4 18.4 12.3 18
traversing 43.8 44.5 44 41.9 53 38.13
travelling 48.4-54.6 49.1-51.2 51 51.2 51.1 43.8

L Type Single Girder Gantry Crane Main Features

1. Lightweight and efficient, can pass the legs.

2. It is suitable for handling long materials;

3. Long service life: 30-50 years;

4. Motor insulation: F grade;

5. Electric hoists come from our group;

6. The speed can be adjusted by frequency conversion; it adopts PLC.

7. The control method is the cab control, pendant control or remote control;

8. The crane is equipped with all travel limit switches, loading limits and other standard safety devices to ensure the crane's working safety.

9. Degree of protection: IP55.

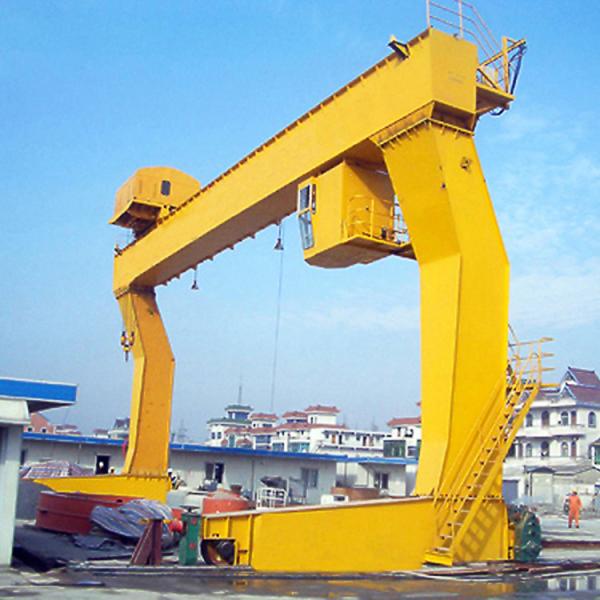

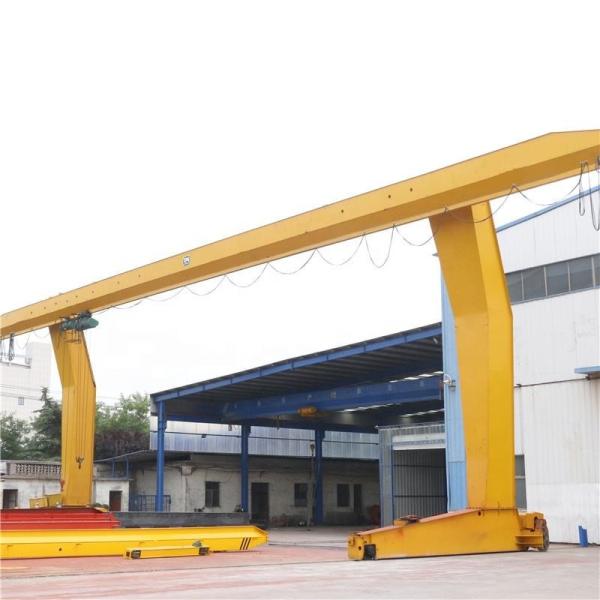

L Type Single Girder Gantry Crane Images

18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity

18m-35m Span Single Girder Gantry Crane With Electric Hoist 50/10 Ton Capacity
