L Type Single Beam Gantry Crane 30m Cantilever Bridge Crane 10 Ton With Hoist
L Type Single Beam Gantry Crane 30m Cantilever Bridge Crane 10 Ton With Hoist
Specifications
Brand Name :
SGY
Model Number :
L
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD5200.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packing of Single girder crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
name :
L Type Single Beam Cantilever Gantry Crane
Type :
Hoist Single Girder Gantry Crane
capacity :
10t , 16t , 20/10t , 30/10t , 36/16t , 50/10t
span :
18-32m
Girder Type :
Box girder
Max. Lifting Height :
Generally 30m or customized
Working temperature :
-25℃~+40℃
Lifting speed :
0~8m/min
Control Method :
Press button,remote control,cabin
Safe Function :
Weight overload/Current overload/Voltage lower protection and so on
Description

L Type Single Beam Cantilever Gantry Crane 10 Ton With Hoist

L Type Single Beam Gantry Crane Description

L-shaped single girder gantry crane, box girder, good technology, easy to manufacture; truss girder, light weight, strong wind resistance. According to different purposes, MH gantry cranes also have cantilever and non-cantilever gantry cranes. If there is a boom, the crane can load the goods to the edge of the crane through the outriggers, which is very convenient and efficient. L-shaped single-girder gantry cranes are mainly used for loading and unloading of outdoor freight yards, stockyards, and bulk cargo.

L Type Single Beam Gantry Crane Technical Parameter

Capacity t 10 16 20/10 30/10 36/16 50/10
Span m 18-35 18-30 18-35 22-26 26-30 32
Duty medium medium medium medium Heavy Heavy/medium
lifting height main m 11.5 12.5 10.5 11.5 11.5 12
aux. / / 11 12 12 13
speed hoist main m/min 18.4 12.3 9.2 10.4 10.4 6
aux. / / 18.4 18.4 12.3 18
traversing 43.8 44.5 44 41.9 53 38.13
travelling 48.4-54.6 49.1-51.2 51 51.2 51.1 43.8

L Type Single Beam Gantry Crane Features

The structure is simple and compact, and the performance is stable.
Easy installation and high efficiency.
Overload and low voltage protection devices.
Pendant control and remote control.
Easy to maintain.

L Type Single Beam Gantry Crane Specification

Lifting capacity is 5ton to 10ton;
Span is 16m to 28m;
Lifting height is 6m, 9m,
Working duty is A5;
Working temperature is -20°C to + 50°C.

L Type Single Beam Gantry Crane Images

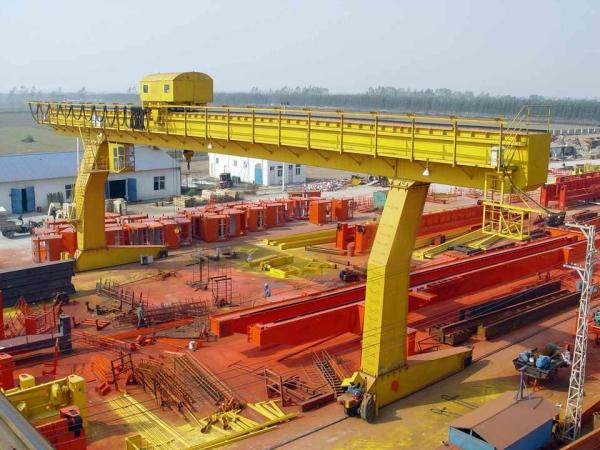

L Type Single Beam Gantry Crane 30m Cantilever Bridge Crane 10 Ton With Hoist

L Type Single Beam Gantry Crane 30m Cantilever Bridge Crane 10 Ton With Hoist
