L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop
L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop
L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop
L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop
Specifications
Brand Name :
SGY
Model Number :
L
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD5200.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packing of Single girder crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Name :
L Type Single Beam Gantry Crane(Hoist Type)
keywords :
Outdoor Workshop Gantry Crane
Lifting Mechanism :
Electric hoist
Safe Function :
Weight overload/Current overload/Voltage lower protection and so on
Control Method :
Press button,remote control,cabin
Working duty :
A3
Max. Lifting Height :
Generally 30m or customized
Rated Loading Capacity :
20t
Warranty :
1 Year
Main electrical parts :
Schneider
Description

L Type Single Girder Goliath Crane Outdoor Workshop Gantry Crane

L Type Single Beam Gantry Crane Description

1. The L-shaped single-girder gantry crane is mainly composed of a mast, a trolley, a trolley running mechanism, a cab and an electronic control system.


2. The gantry is a box structure. The trolley with a lifting capacity of less than 20t adopts vertical reaction wheels, and when the lifting capacity is more than 20t, it adopts horizontal reaction wheels to run on the side of the main beam.


3. The main girder is a single girder inclined rail, and the outriggers are L-shaped, with a large lifting space and a strong span capacity, which is convenient for carrying items from the span to the bottom of the jib.

L Type Single Beam Gantry Crane Technical parameter

Capacity t 10 16 20/10 30/10 36/16 50/10
Span m 18-35 18-30 18-35 22-26 26-30 32
Duty medium medium medium medium Heavy Heavy/medium
lifting height main m 11.5 12.5 10.5 11.5 11.5 12
aux. / / 11 12 12 13
speed hoist main m/min 18.4 12.3 9.2 10.4 10.4 6
aux. / / 18.4 18.4 12.3 18
traversing 43.8 44.5 44 41.9 53 38.13
travelling 48.4-54.6 49.1-51.2 51 51.2 51.1 43.8

L Type Single Beam Gantry Crane Advantages

1. The structure is simple and compact, and the performance is stable.
2. It is easy to install and has high efficiency.
3. Overload, low voltage protection device.
4. Hanging control and remote control.
5. It is easy to maintain.
6. To prevent the hook from colliding with the roof, set up protective covers and obstacles.
7. Circuit self-test protection device, running travel limit to protect any phase of power shortage.
8. The outdoor crane is equipped with a lifting mechanism, an electrical control box and a rainproof device.
9. Anti-collision and sound and light alarm device. Comes with rail clips.

L Type Single Beam Gantry Crane Main Features

1. Lightweight and efficient, can pass the legs.

2. It is suitable for handling long materials;

3. Long service life: 30-50 years;

4. Motor insulation: F grade;

5. Electric hoists come from our group;

6. The speed can be adjusted by frequency conversion; it adopts PLC.

7. The control method is the cab control, pendant control or remote control;

8. The crane is equipped with all travel limit switches, loading limits and other standard safety devices to ensure the crane's working safety.

9. Protection level: IP55.

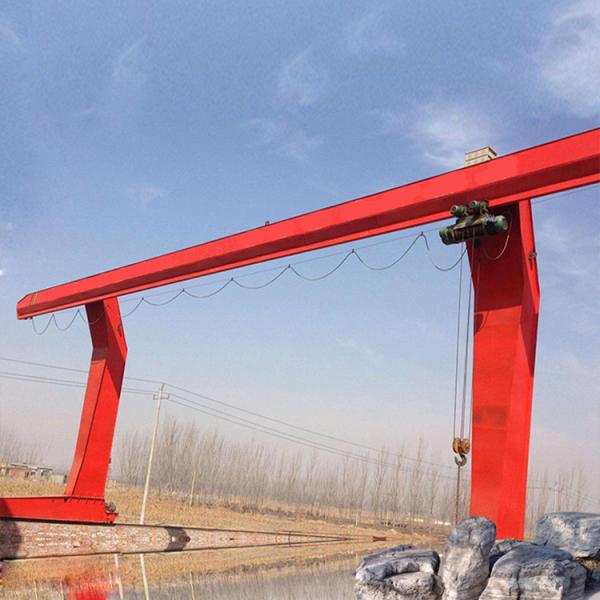

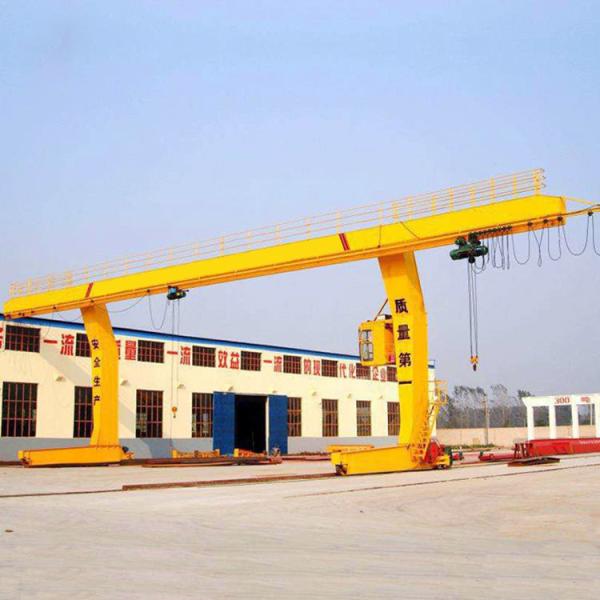

L Type Single Beam Gantry Crane Images

L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop

L Type Single Girder Goliath Gantry Crane Outdoor Box Structured For Workshop
