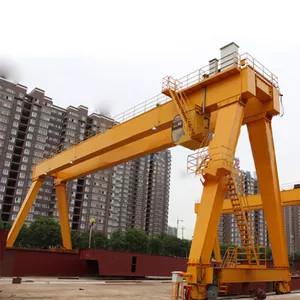

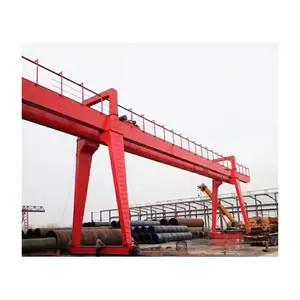

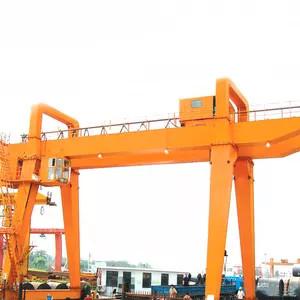

A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
Specifications
Brand Name :
SGY
Model Number :
MG
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 Set
Price :
USD6000.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 25days after deposit received.
Packaging Details :
Packing of crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
product name :
A Type Double Beam Gantry Crane
keywords :
Double Girder Gantry Crane
Warranty :
12 Months
Condition :
New
Application :
Outdoor
Product name :
Double Girder Gantry Crane
Control method :
cabin control/wire rope remote control
Main electrical parts :
Schneider
Color :
Customer Requirements
Power source :
User Requirments
Description

A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane

A Type Double Beam Gantry Crane Introduction

A-type Double Beam Hook Gantry Crane consists of A-type gantry frame steel structure, trolley, crane traveling mechanism, electrical system and other main components. Outdoor operation gantry crane also equipped with rail clamp, weight restriction device, limit device of each mechanism, as well as various safety devices in accordance with prescribed safety procedures of cranes. Sometimes the crane also equipped with rail clamp device, anchor device, anemometer, corrective devices, etc. as required. A-type Double Beam Hook Gantry Crane with hook are used for handling and lifting materials in open storage, stock ground, railway freight station, ports and so on. It can also carry out some special operations by equipped with various special lifting tools.

A Type Double Beam Gantry Crane Technical Parameter

Capacity

Ton

5~300

Span

m

12~35

Lifting height

m

6~12

Lifting speed

m/min

2~15

Travelling speed

m/min

20~60

Drive type

Motor driven for all motions

Duty Class

A3~A6

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton control or remote control or cabin control

Main Features of A Type Double Beam Gantry Crane

1.This gantry crane own the performance of low expense, high performance, easy to operate and maintenance and so on.
2.All hoist and crane movements are independent and can be run simultaneously different design duo to meet crane applications, Flexible solution for all lifting needs.
3.Excellent driving properties, frequency control, smoothly moving.
4.End carriage equipped with anti-friction bearings, crane buffer block, derailment protectors.

A Type Double Beam Gantry Crane Safety Devices


1. Overload Limiter ; Limit Switch (Lifting and Traveling) ; Short-circuit protection.
2. Rail tongs, Anchor device and Motor overload protection.
3. Protective cover and c urrent overload protection system.
4. Rail clear plate and e mergency stop system.
5. Interlock protection device ; Under-voltage protection ; Buffer ; Zero protection.
6. Anti-collision device rotection.

A Type Double Beam Gantry Crane Advantage


1.Double box beam with steel legs moving through the ground beam as crane travelling system
2.Steel Material: Q235 or Q345
3.Shot-blasting Sa2.5 for main girder and supporting beam
4.Epoxy zinc rich high quality painting.
5.Electrification and outfitting
6.Brand: CHINT SIEMENS Schneider
7.Conductor power supply: Cable Reel or busbar.
8.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run
simultaneously different design duo to meet crane applications
9.Whole layout provides good protection against special working environment. Such as gas workshop

A Type Double Beam Gantry Crane Detailed Images

A Type Double Beam Gantry Crane Warehouse Double Girder Gantry Crane
