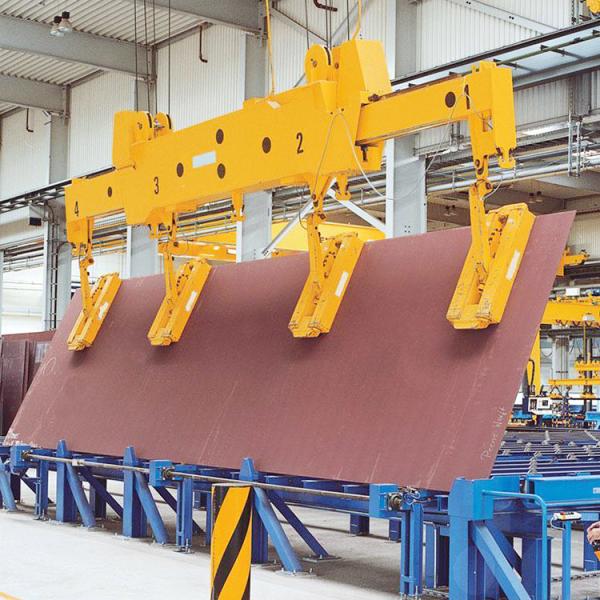

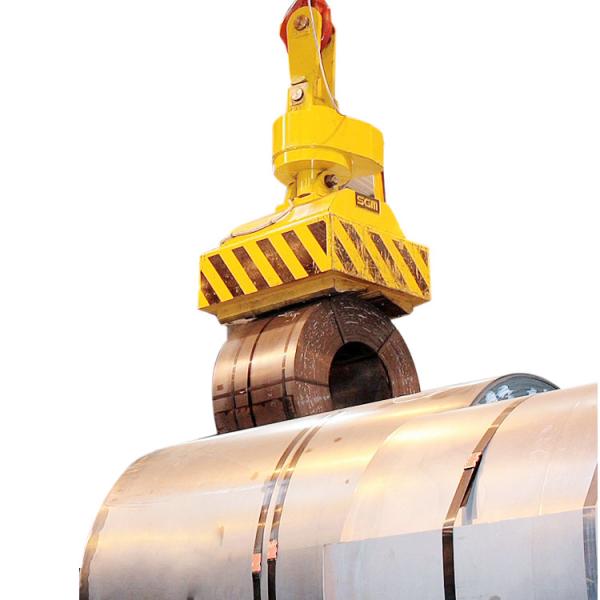

Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel
Specifications
Brand Name :
SGY
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 5000
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
20 work days
Warranty :
1 Year
Condition :
100% brand new
Material :
Q235B
Color :
Customer Required
Feature :
High Efficiency
Application :
For crane
Product name :
Electromagnetic chuck
Usage :
widely used in cranes
Description

Highly Reliable Overhead Crane Spare Parts Plate Magnets For Lifting Steel

Overview

The electromagnetic chuck is an electromagnetic fixture, which fixes the workpiece by the suction force generated by the chuck body after the electromagnetic coil is energized. The electromagnetic chuck is composed of iron core, coil, panel and bracket. The electromagnet composed of the coil and the iron core is the main part of the electromagnetic chuck. Electromagnetic chucks are different due to differences in design methods or materials used, and are constantly being developed and improved.

Application

Suitable for transferring cast ingots, steel balls, metal and steel scraps.

The High performance scrap metal magnet scrap lifting electromagnet can be fitted on excavator or crane.

Feature

The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.

The High performance scrap metal magnet scrap lifting electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.

Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.

High lifting capacity, light self-weight.

Low power consumption, long service life.

Technical Data

Three types for option:

1. Normal temperature type (DC-220V TD-60%)

2. High frequency type (DC-220V TD-75%)

3. High temperature type (DC-220V TD-60)

Model

Diameter

(mm)

Current

(A)

Power (kW)

Lifting capacity (cold/hot state) (kgs)

Steel ball

Steel ingot

Steel scrap

MW5-70L/1

700

15

3.3

2500

380/200

120/100

MW5-80L/1

800

18

3.96

3000

480/250

150/130

MW5-90L/1

900

26.6

5.85

4500

600/400

250/200

MW5-110L/1

1100

35

7.7

6500

1000/800

450/400

MW5-120L/1

1200

45.5

10

7500

1300/1000

600/500

MW5-130L/1

1300

54

11.9

8500

1400/1100

700/600

MW5-150L/1

1500

71.2

15.6

11000

1900/1500

1100/900

MW5-165L/1

1650

75

16.5

12500

2300/1800

1300/1100

MW5-180L/1

1800

102.4

22.5

14500

2750/2100

1600/1350

MW5-210L/1

2100

129

28.4

21000

3500/2800

2200/1850

MW5-240L/1

2400

154

33.9

26000

4800/3800

2850/2250

Application Scenario
