C Type Hook

Factory Use 3.2 Ton to 32 Ton C Type Lifting Hook coil lifting hook:

C-hook is a kind of hook, suitable for handling steel coils, coils tempering, storage warehouse stacking, transport handling and so on. According to the requirements of the design of choice.

Main purpose:Horizontal lifting of steel coil

Load range: 3.2-32 tons

Suggestions for use: load 3.2T, type A; more than 3.2T, type B

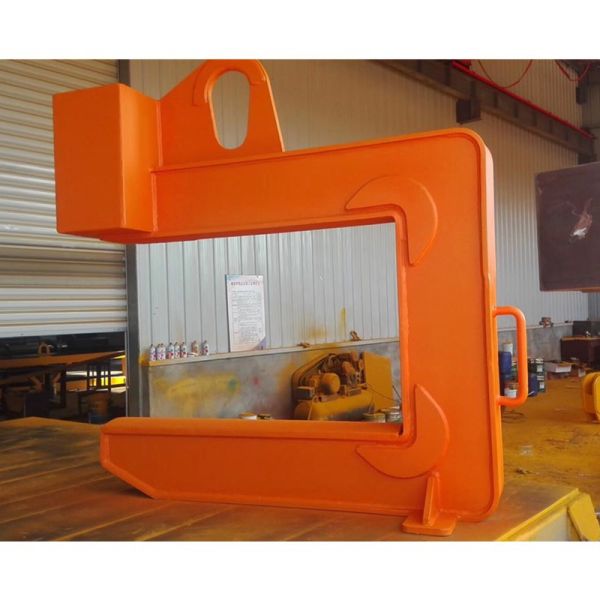

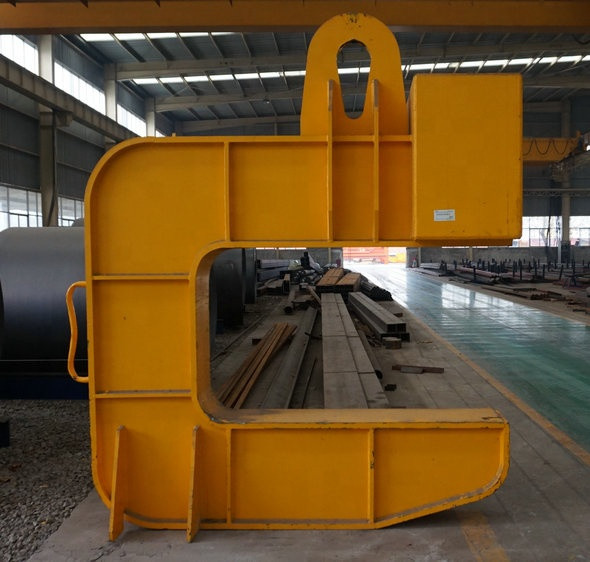

C-type lifting hook for steel coil is mainly used for the horizontal lifting of the coiled plate. Because its shape resembles the literal C, it is called a C-type spreader. Lifting and installation process, knot
The structure is simple and reasonable, the action is flexible, the use is convenient, and the lifting is safe and reliable.

Main Structures of C-type lifting hook for steel coil:

C-type lifting hook for steel coil are mainly composed of hanging concrete and heavy iron.
1. Hanging specific: The main part of the C-type spreader is made of steel plate (high-quality low-alloy steel) and steel pipe. The cross-section is box-shaped structure, which has good resistance to bending and torsion. The spreader is light in weight and has a service life. long.
2. Counterweight iron: It plays the role of adjusting the balance of the spreader, so that the center of gravity of the spreader and the object to be lifted is in a line.

Routine maintenance:

C-type lifting hook for steel coil must be placed on a dedicated shelf and stored in a ventilated, dry, and clean factory, and kept by a special person.

The surface of C-type lifting hook for steel coil should be protected against rust frequently, and it should not be stored in acid, alkali, salt, chemical gas and humid environment.

C-type lifting hook for steel coil are prohibited from being stored in high temperature areas.

Regularly clean the rotating parts and regularly lubricate the oil to prevent dry friction and jamming.

Characteristic of C hook for lifting coil:

1) Simple structure in linear type ,easy in installation and maintation.
2) Easy to fabricate, no damage to steel coils, large work place and slightly complicated operation.
3) lift coil horizontally ,it is widely used in hot-strip mill , cold rolling mill, station, freight yard, dock and mills produce steel coil.
