QC Model Double Beam Eot Crane With Electric Magnet

Product Description:

Electric magnetic crane, It is special crane with electromagnetic disk, special used in metallury and mechanism factory load and unload metallic materials such as steel plate,scrap iron,and so on.

It is an heavy duty crane with working grade A6, cabin control , crane weight including electromagnetic disk dead weight.

Beam:

QC model Double Girder Overhead Electromagnetic Crane, the main beam and end beam boxed type with ISO standard.Steel plate material Q235B/Q345B
CNC cutting for complete steel plate, with high surface flatness and accuracy.
National standard 24#38#43#adapted for cross travel rail.
High quality automatic welding and NDT inspection for main welding lines.
Impeller blasting Sa2.5 for complete girder after welding to eliminate welding stress.
Epoxy zinc-rich painting, 2*2 with 140μm. Nice appearance and good gloss.
Main girder and end carriage connected by welding as a whole structure, making the crane longer serving life and more durable.
Reformative flat wheels and anti-friction bearing helping the long travel more smooth with littlenoise.
Checkered plate, handrail (1050mm) and upright united together as maintenance platform
Buffers derailment protectors equipped for safety crane travel.

Spreader:

Normally, the Double Girder Overhead Electromagnetic Crane is going with the carrier beam, which is of fixed type, telescopic type, or rotating type, according to the different working request.

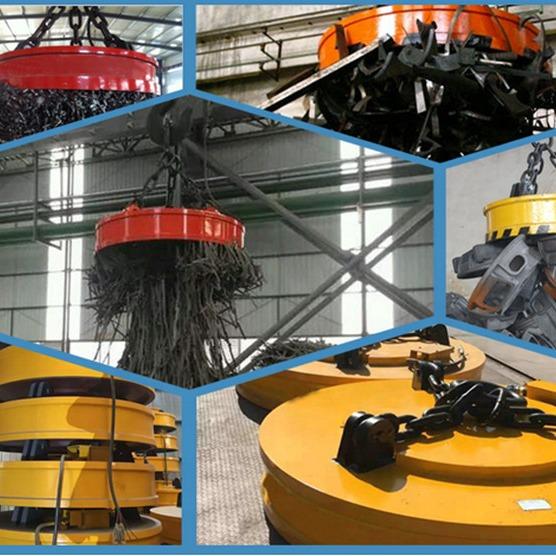

Electromagnet:

a) Principal. Based on the details of the lifting subject, we recommend the most suitable electromagnet for customers.
b) Magnetic regulating and Preserving Equipment. It’s a safety insurance system of rectification control system and power-off protection system. Normally, we could control the protection time after power off 15 min at least.

Application:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.
2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.
3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.
4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.
5. Widely used in steel mill to convey steel scrap or steel bar.

Safety is the most important issue for crane. To ensure the safety, the following safety devices are equipped in SGY crane.

1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
