Specifications
Brand Name :
YT
Model Number :
MH
Certification :
CE ISO
Place of Origin :
Xinxiang,Henan Province,China
MOQ :
1set
Price :
USD10000-30000 per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sets per year
Delivery Time :
30-60work days
Packaging Details :
The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.
Type :
MH
Lifting Weight :
5~20t
Lifting Height :
6~9m
Span :
12~30m
Working Class :
A3~A4
Lifting Speed :
0.8-8m/min
The Crane Weight :
6646~40553kg
Travelling Speed :
20m/min
Power Supply :
three-phase AC 380V 50Hz
Color :
Customer Requirements
Description

5t~20t Light Duty Q345 Steel Single Girder Gantry Crane Customized

Single Girder Gantry Crane Description

Single girder gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.

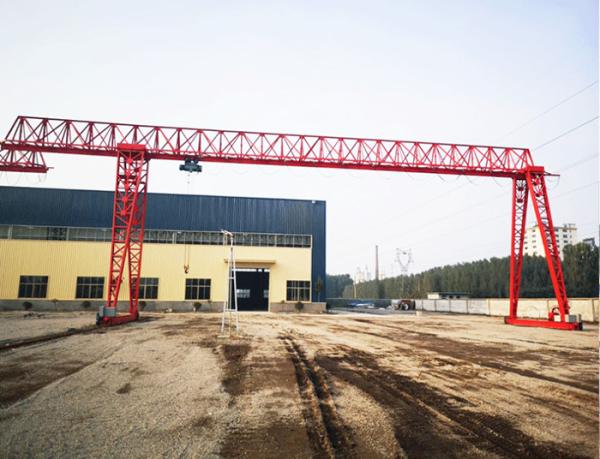

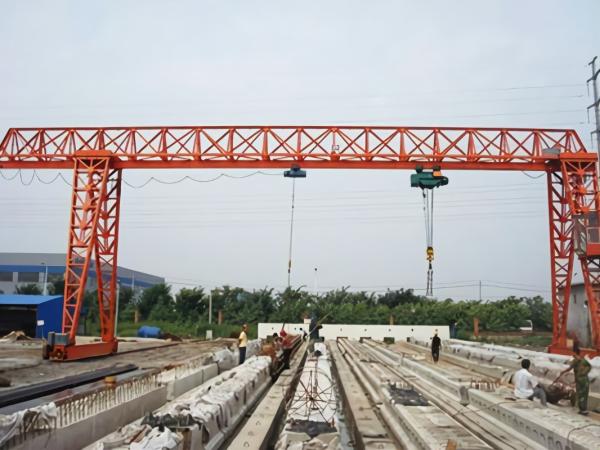

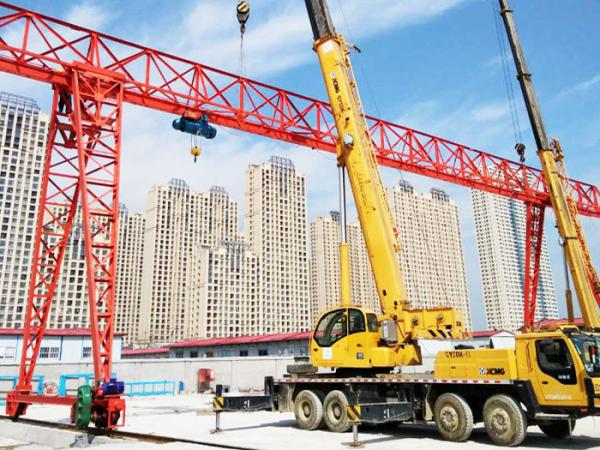

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.

Single Girder Gantry Crane Technical Details

Capacity

T

3

5

10

16

20

Span

m

12,16,20,24,30

Operational method

Pendent Line With Press Button /Cabin/ Remote

Speed

Lifting

m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5

3.5

Cross traveling

20

20

20

20

20

Long traveling

Ground

20

20

20

20

20

Cabin

20, 30,45

20, 30,40

30,40

30,40

30,40

Motor

Lifting

Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13

ZD152-4/18

Cross traveling

ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.82

ZDY121-4/0.82

YZD-4/0.84

Long traveling

Ground

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52

Cabin

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112

Electric hoist

Model

CD1/MD1

CD1/MD1

CD1/MD1

CD1

HC

Lifting height

m

6,9,12,18,24,30

Working duty

A3

Power supply

380V 60HZ 3phase AC (According to your demand )

Gantry Crane Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Single Girder Gantry Crane Sketch

5t ~ 20t Light Duty Q345 Steel Single Girder Gantry Crane Customized
5t ~ 20t Light Duty Q345 Steel Single Girder Gantry Crane Customized
