ODM Heavy Duty Electric Double Girder Overhead Crane LH Model JB / T3695 - 2008

LH Model Double Girder Overhead Crane Details

1. Compact design.
Lightweight structure, excellent performance, advanced design concept, improve the air Secondary utilization rate.
2. Fast and smooth loading.
Complete standard configuration, smooth running, fast positioning, running Smooth and safe.
3. Good performance.
According to customer requirements processing production, weight bearing, cost-effective 'sales after the security
4. Safe and reliable.
Advanced technology for manufacturing, safe and reliable performance, safe use life life more than 1 million times, can ensure the long-term trouble-free operation.

LH Model Double Girder Overhead Crane Parameter

LH Model Double Girder Overhead Crane Feature

1, Overhead traveling on the steel structure, normally in workshop, working duty from A4

2, Strong box type steel structure for crane.

3, Six direction action, to make sure the enough wide working area.

4, Full safety system as follows:

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

Limit switch and stopper for crane long traveling and cross traveling

Lifting overhigh and overlow limit switch

LH Model Double Girder Overhead Crane Application

LH Type Electric Double Beam Electric Bridge Crane has two forms of cab control and ground control. There are two types of operation room: open type and closed type, which can be divided into two types of left or right installation according to the actual situation. There are three types of entry directions: side face, end face and top, so as to meet the user's choice in different needs.

This product is mainly suitable for transfer, assembly, overhaul and loading and unloading operations in machining workshops, auxiliary workshops of metallurgical plants, warehouses, stockyards, power stations, etc. It can also replace ordinary double-girder overhead cranes for production workshops in light textile industry and food industry. The working type is light and intermediate, the working environment temperature is -20-40 ℃, and it is not suitable for flammable, explosive and corrosive medium environments.

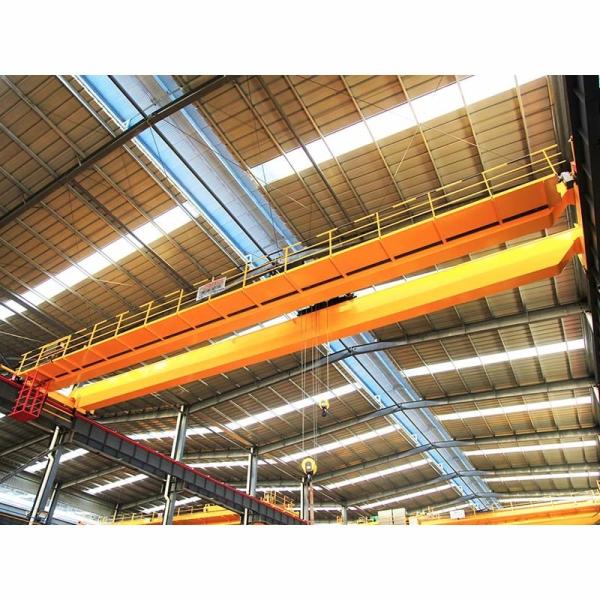

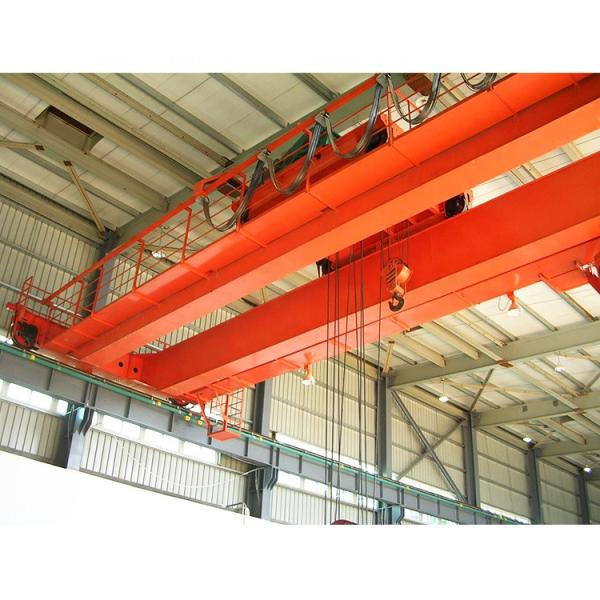

LH Model Double Girder Overhead Crane Images
