Warehouse Double Girder Overhead Crane With Grab Bucket
Warehouse Double Girder Overhead Crane With Grab Bucket
Warehouse Double Girder Overhead Crane With Grab Bucket
Warehouse Double Girder Overhead Crane With Grab Bucket
Warehouse Double Girder Overhead Crane With Grab Bucket
Warehouse Double Girder Overhead Crane With Grab Bucket
Specifications
Brand Name :
SGY
Model Number :
QZ
Certification :
GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000.00-80000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
QZ Electric Overhead Travelling Crane packing details: 1. Electric parts are packed by high quality wooden box, to reduce distortion in conveying. 2. Main beams, end beams and trolley/winch are packed by plastic woven cloth. It can reduce abrasio
Product Name :
Qz Model Double Girder Overhead Crane With Grab
Main electrical parts :
Schneider or customized
Work Duty :
A6-A8
Main Lifting Mechanism :
Electric trolley
Steel products :
Q235B
Control Method :
Cab Control; Pendant + remote control
Max. Lifting Load :
50/10 ton
Color :
Customized Color Acceptable
Span :
1-31.5m
Max. Lifting Height :
7.5m, 5M, 10M, 15M, 26m
Description

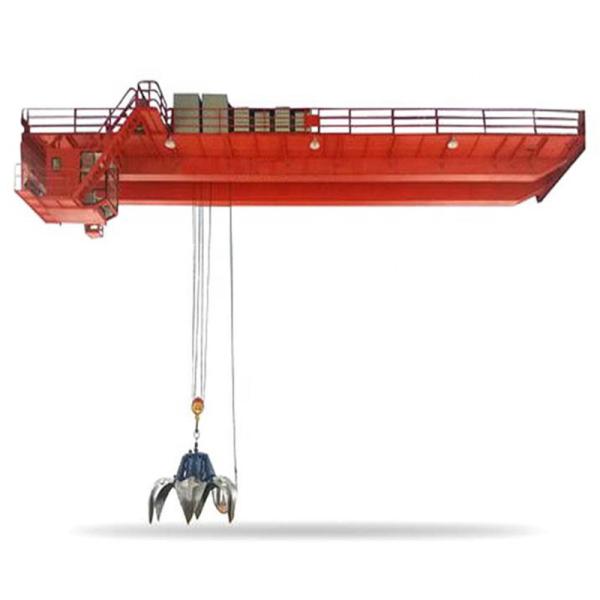

QZ Model Double Girder Overhead Crane With Grab

QZ Model Double Girder Overhead Crane Description

QZ Grab Bucket Overhead Crane is a kind of heavy duty overhead crane to grab and load coal, ash, coal gangue and other bulk goods and materials.
QZ Grab Bucket Overhead Crane is mainly comprised of box-shaped girder, End Carriage, Lifting Trolley, Grab bucket and Electrical control system. Generally, the power supply System for trolley and crane are festoon system and Bus Bar system.

QZ Model Motor-driven Double Girder Grapple Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc. Grab's open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric hydraulic type according to different work duty and materials.

QZ Model Double Girder Overhead Crane Technical parameter

Lifting Capacity
T
5t
10t
16t
20t
Span
m
10.5-31.5m
Speed
Lifting
m/min
40.1
40.7
41.8
48.6
Traveling of Trolley
44.6
45.6
43.2
Traveling of Crane
93.7/86.4
76/89
89/87.3
87.3
Operational Model
Cabin; remote control
Working Duty
A6
Steel track recommended
43kg/m or QU70
Power Supply
Three-phase A.C. 380V, 50Hz

Main Features of QZ Overhead Crane

1). Reasonable structure,strong bearing capacity
2). Low noise, soft starting and stopping
3). Safe and reliable operation
4). Commodious cabin and open view
5). Low cost maintenance, long working life

6). Strong box type,welding by machine hand.

7). Wheels are vacuum casting,medium frequency quenching

8). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control.

9). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running.

10). Siemens main electric parts are used for durable and safe operation

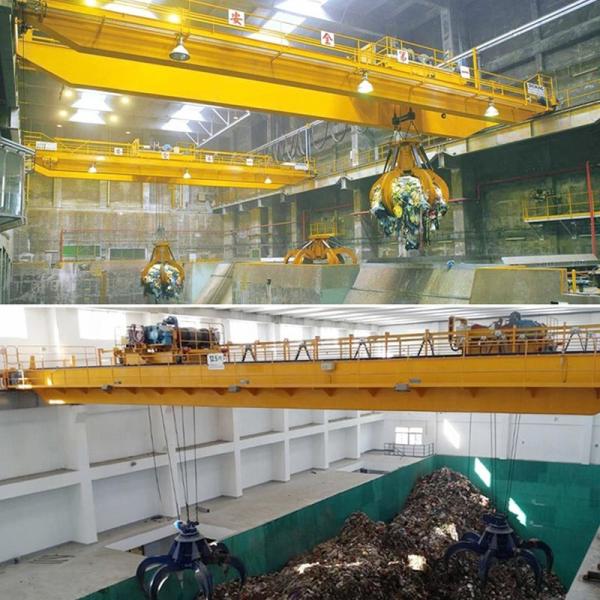

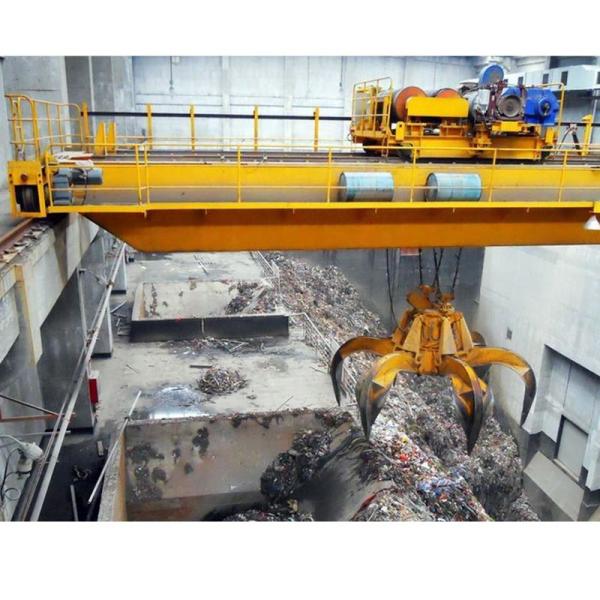

QZ Model Double Girder Overhead Crane Images

Warehouse Double Girder Overhead Crane With Grab Bucket

Warehouse Double Girder Overhead Crane With Grab Bucket
